阿普奇 PLxxxCQ-E7L-Q670 | 8USB無風扇 12.1-27寸10點電容觸控一體機

特點:

全屏電容觸摸屏設計
模塊化設計12.1~27″可選,支持方屏/寬屏
前面板滿足IP65要求
前面板集成USB Type-A和信號指示燈
支持Intel? 12/13/14th Gen Core / Pentium/ Celeron Desktop CPU, TDP 35W, LGA1700
搭配Intel? Q670芯片組
2個Intel網絡接口（1*1GbE & 1*2.5GbE）
3路顯示輸出 HDMI，DP++和內部LVDS, 最高支持4K@60Hz分辨率
豐富的USB、串口擴展接口和PCIe、mini PCIe、M.2擴展插槽
無風扇被動式散熱

l全屏電容觸摸屏設計

l模塊化設計12.1~27“可選,支持方屏/寬屏

l前面板滿足IP65要求

l前面板集成USB Type-A和信號指示燈

l支持Intel? 12/13/14th Gen Core / Pentium/ Celeron Desktop CPU, TDP 35W, LGA1700

l搭配Intel? Q670芯片組

l2個Intel網絡接口（1*1GbE & 1*2.5GbE）

l3路顯示輸出 HDMI，DP++和內部LVDS, 最高支持4K@60Hz分辨率

l豐富的USB、串口擴展接口和PCIe、mini PCIe、M.2擴展插槽

l無風扇被動式散熱

遠程管理
狀態監控
遠程運維
安全控制

聯系我們

掃碼即可添加微信，售前客服為您提供咨詢服務

阿普奇 PLxxxCQ-E7L-Q670 | 8USB無風扇 12.1-27寸10點電容觸控一體機

產品描述

阿普奇全屏電容觸摸工業一體機PLxxxCQ-E7L系列Q670平臺采用先進的電容觸摸屏設計，可滿足各種工業領域的需求。其模塊化設計可選配12.1英寸至21.5英寸屏幕，支持方屏/寬屏，滿足不同場景的使用需求。前面板符合IP65防水防塵要求，適用于惡劣工業環境。前面板還集成了USB Type-A接口和信號指示燈，方便用戶的操作和狀態監控。此外，該工業一體機支持Intel? 12/13代Core/Pentium/Celeron臺式CPU，TDP 35W，LGA1700，并搭載了Intel? Q670芯片組。另外，2個Intel網口接口（1*1GbE和1*2.5GbE）可滿足高速數據傳輸?shù)男枨蟆Ｔ摴I(yè)一體機還擁有3路顯示輸出接口，包括HDMI、DP++和內部LVDS，支持高達4K@60Hz的分辨率，滿足多屏顯示或高清顯示需求。該產品還提供了豐富的USB、串口擴展接口以及PCIe、mini PCIe、M.2擴展插槽，可靈活滿足用戶的擴展需求。同時，采用無風扇無風道無噪音被動散熱技術，工業一體機的散熱效果更加出色，可保證長時間穩定運行。

總之，阿普奇全屏電容觸摸工業一體機PLxxxCQ-E7L系列Q670平臺集成了先進的觸控技術、豐富的接口和穩定的性能，是工業自動化領域的理想選擇。

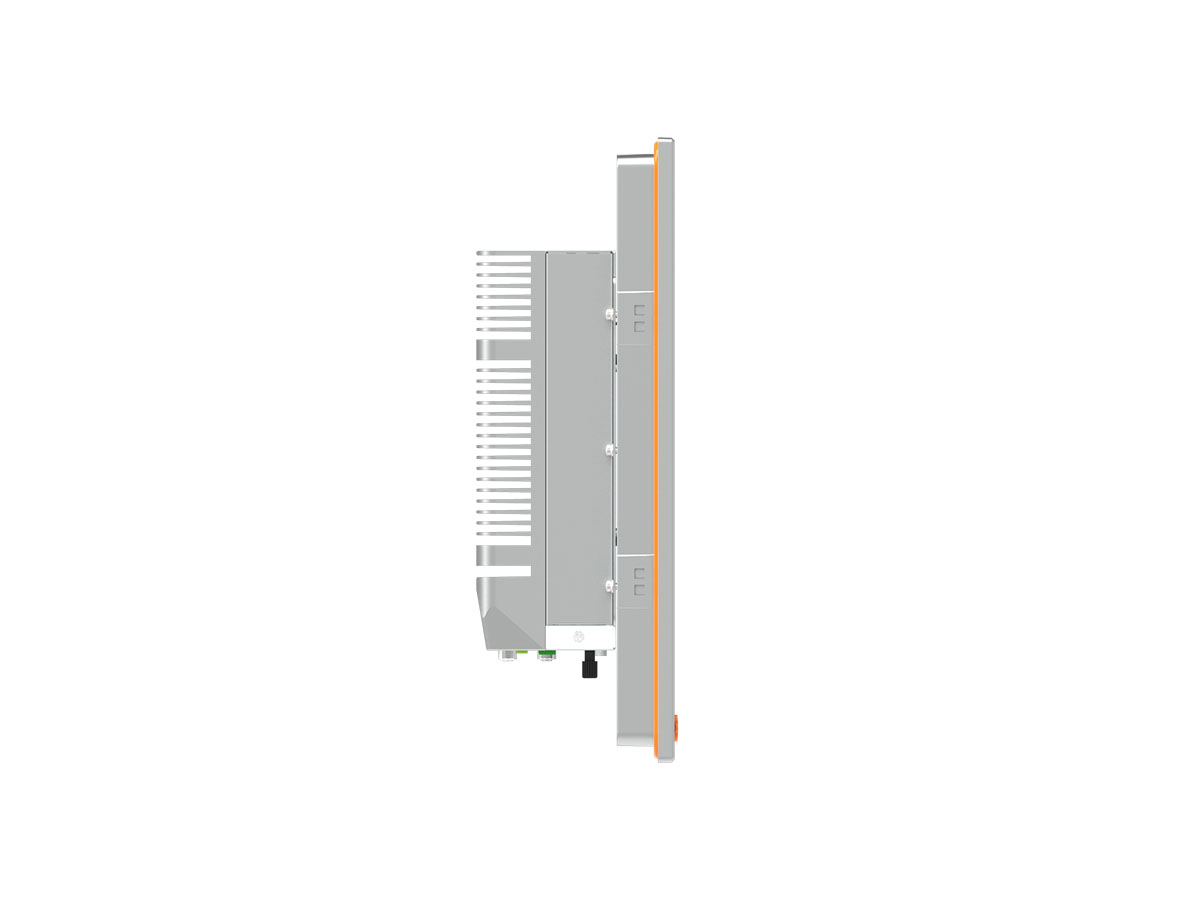

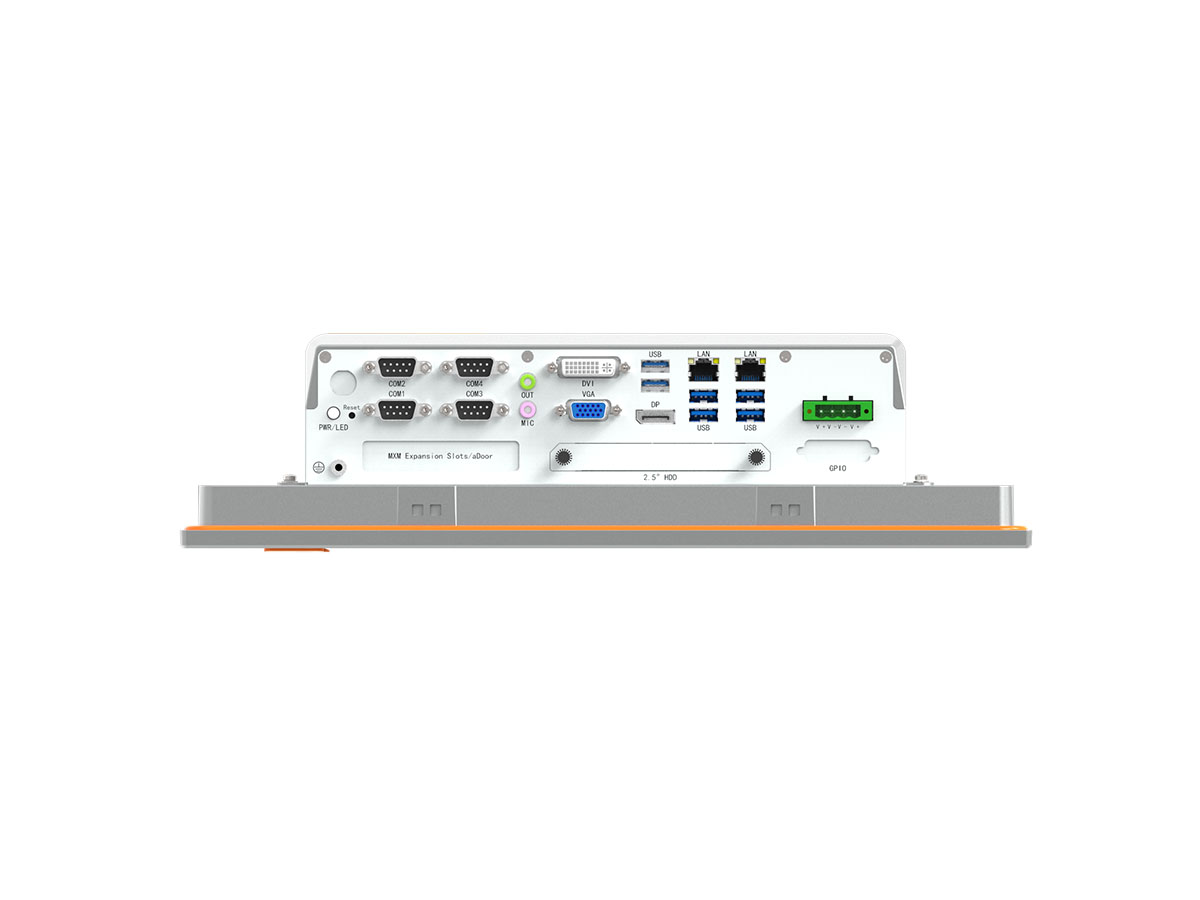

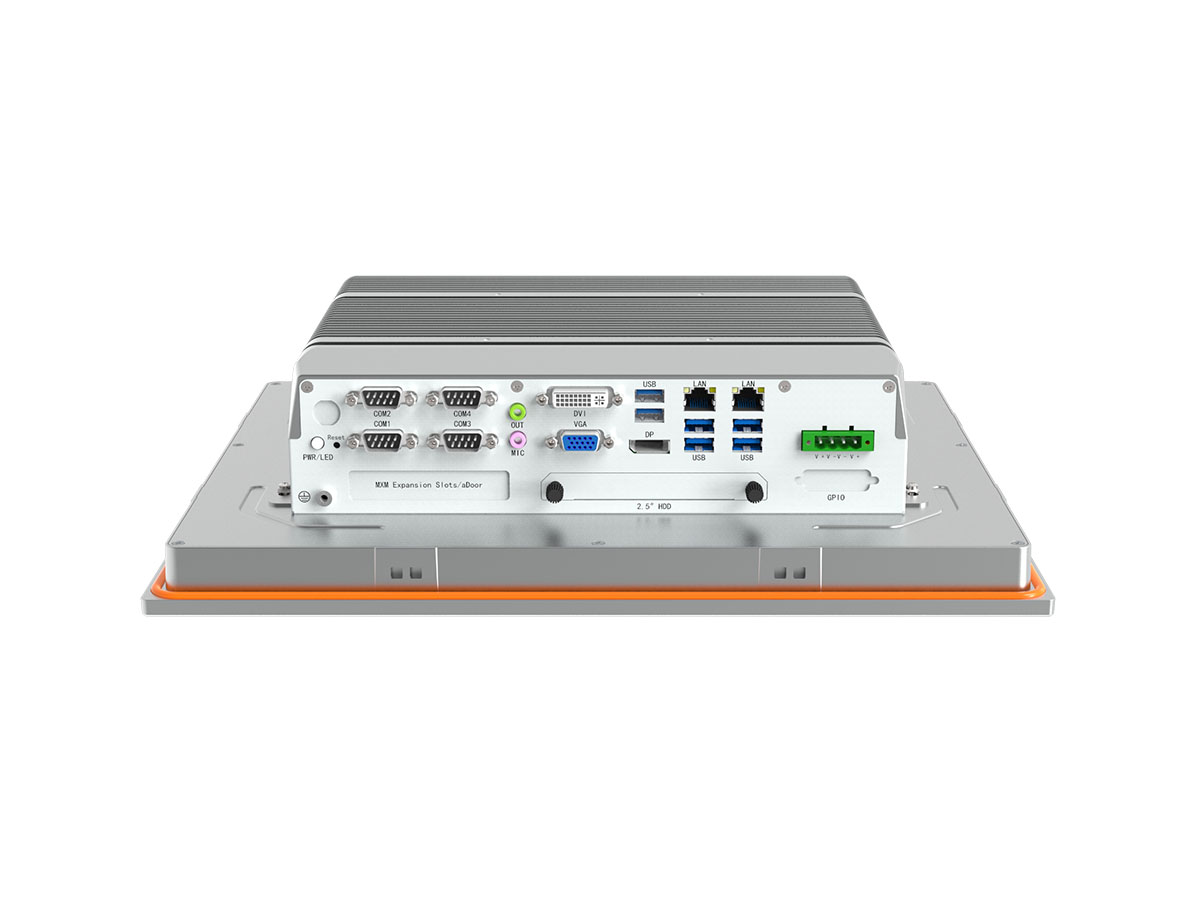

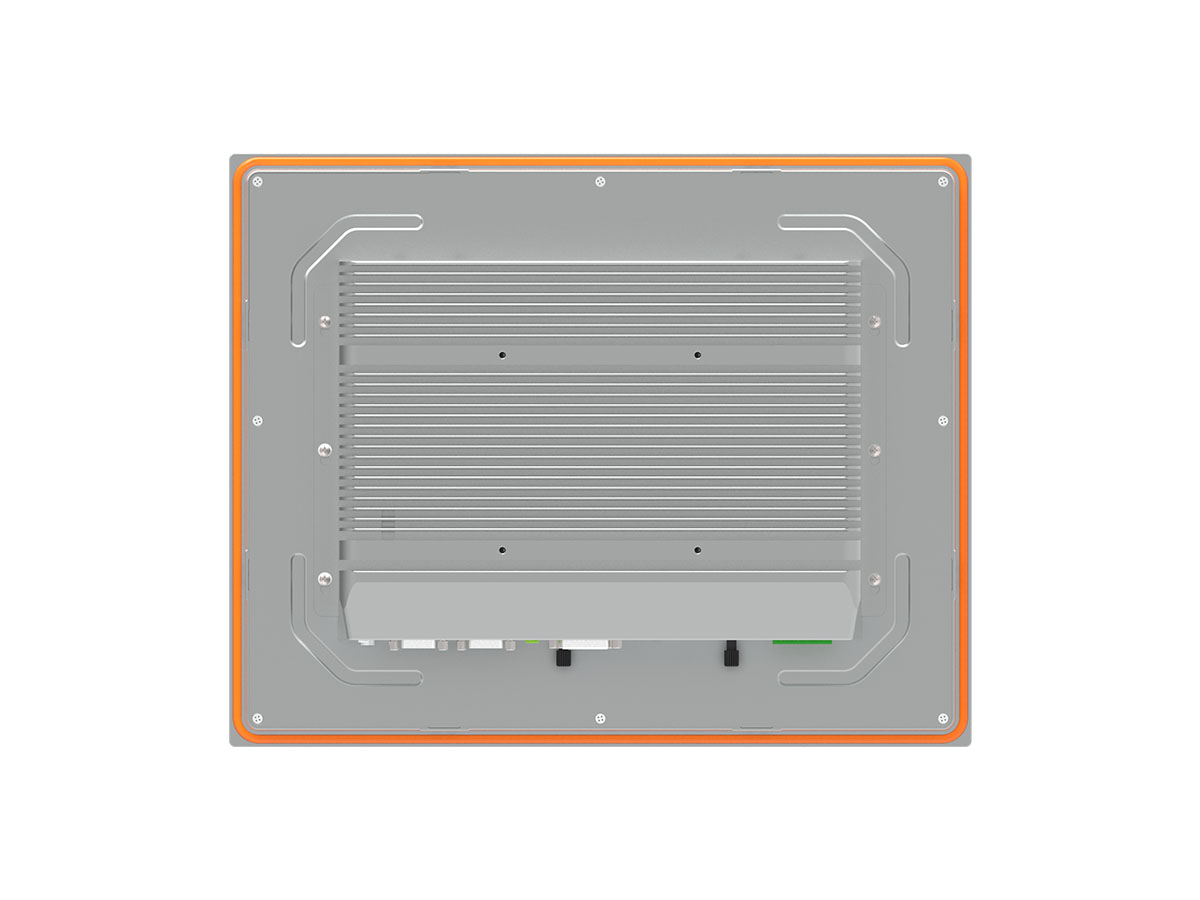

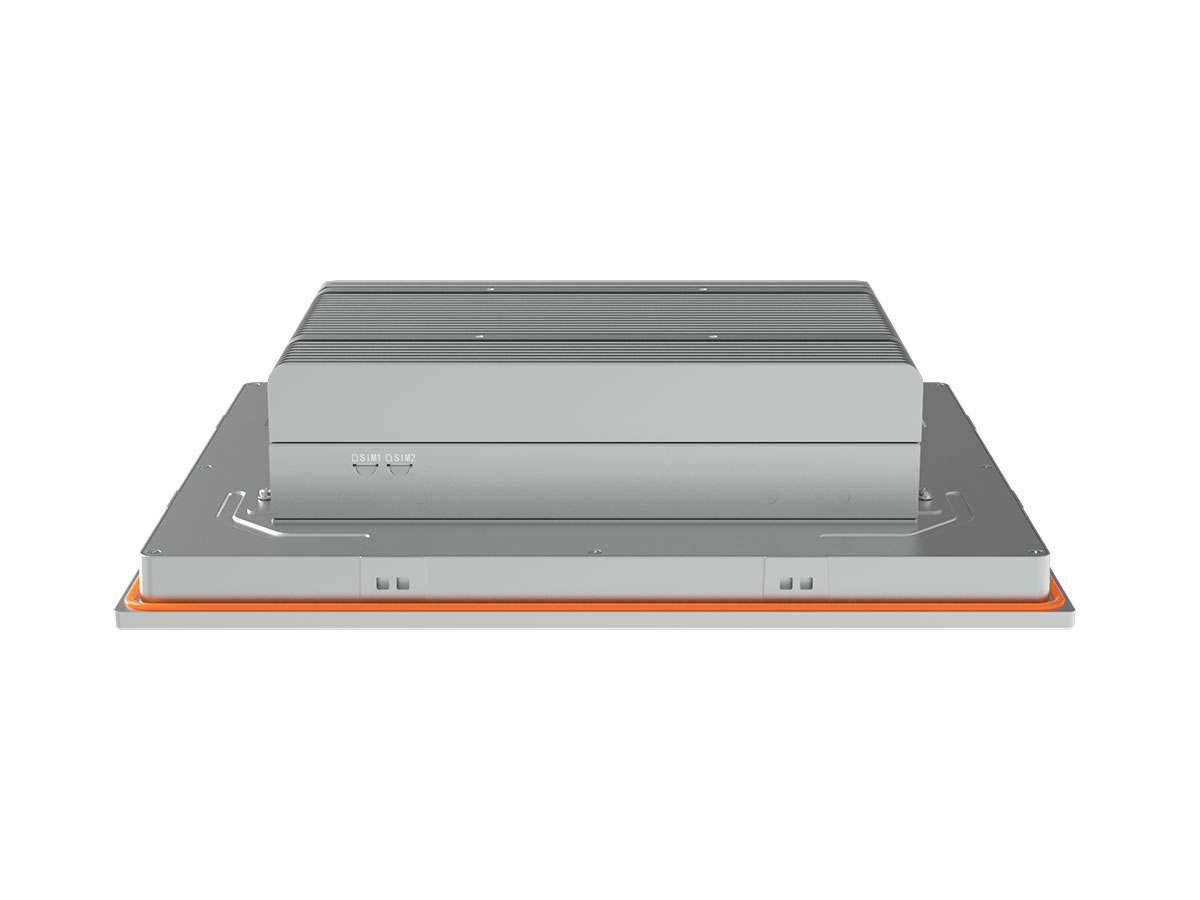

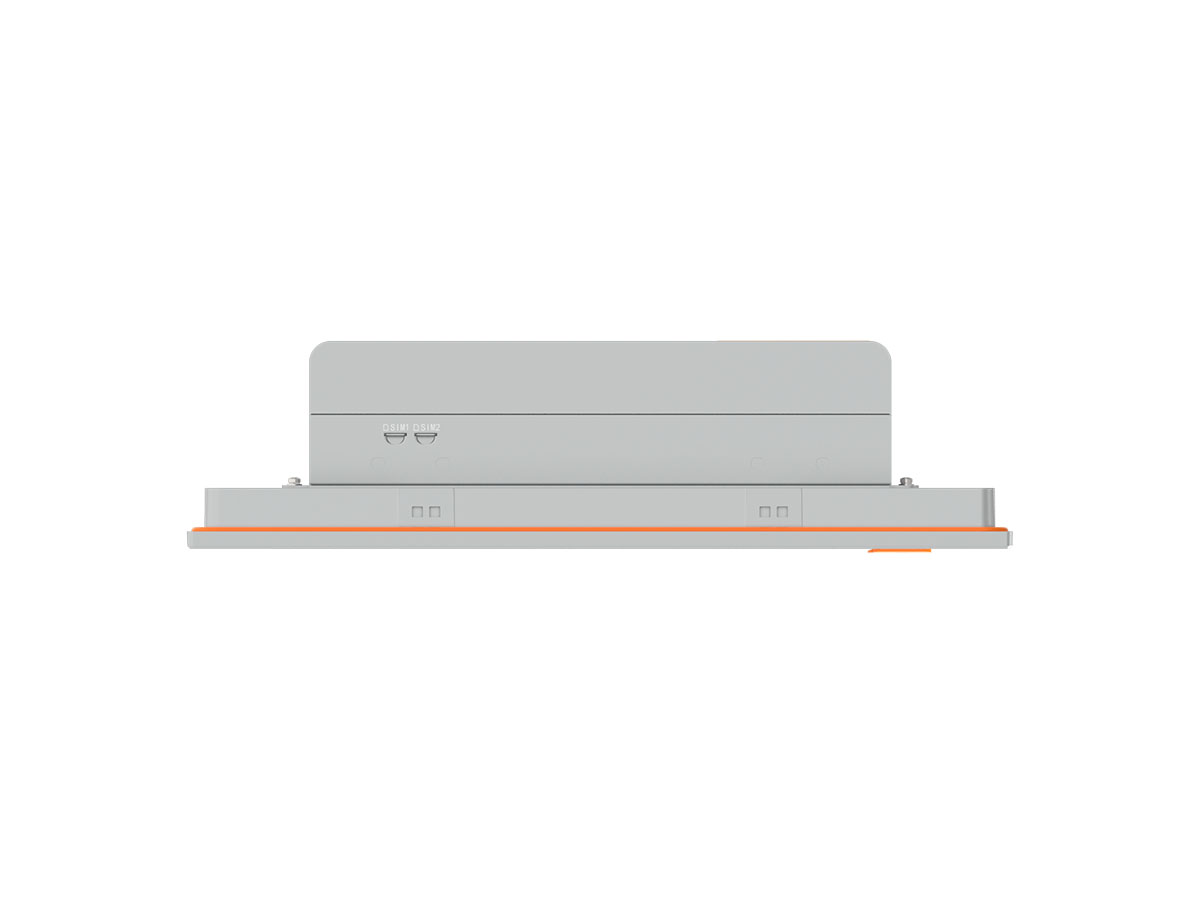

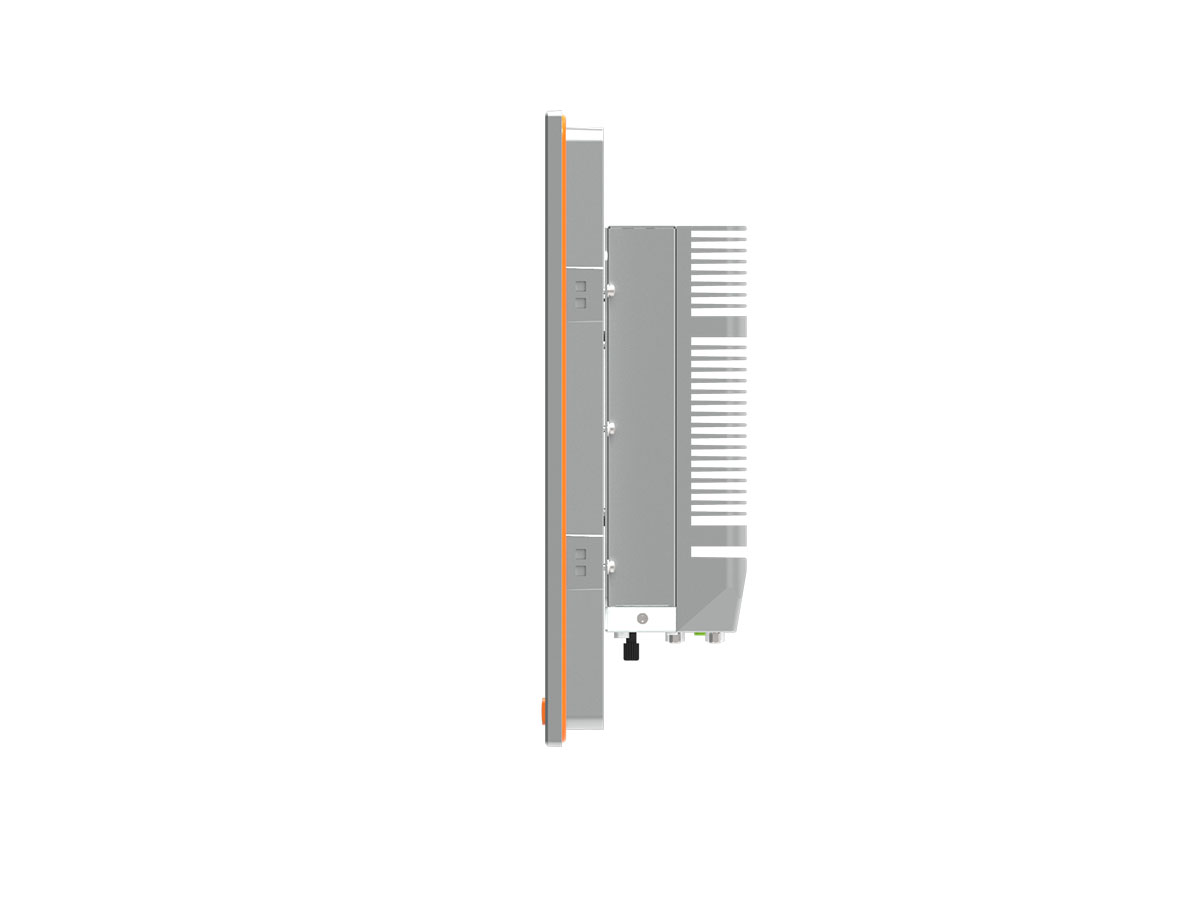

產品介紹

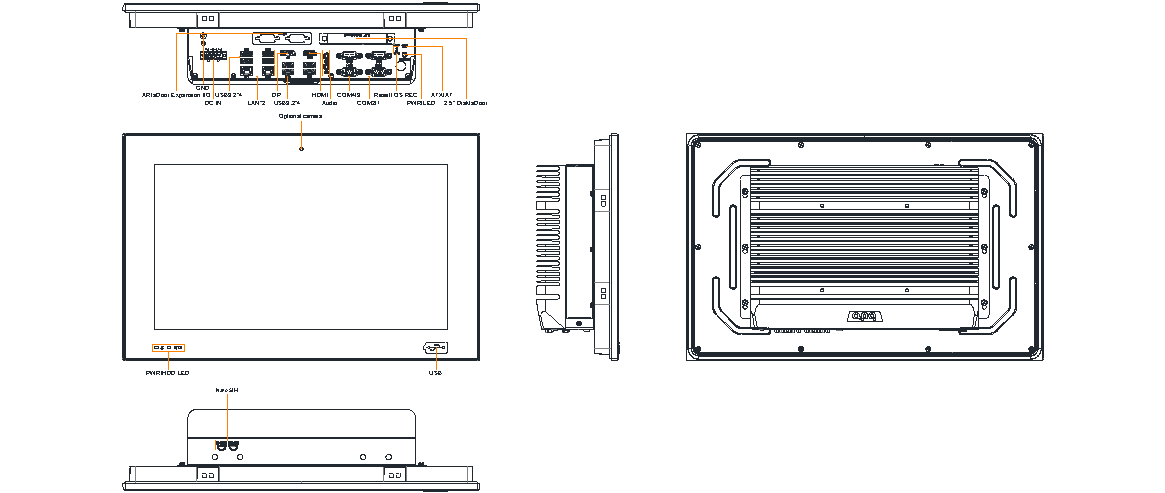

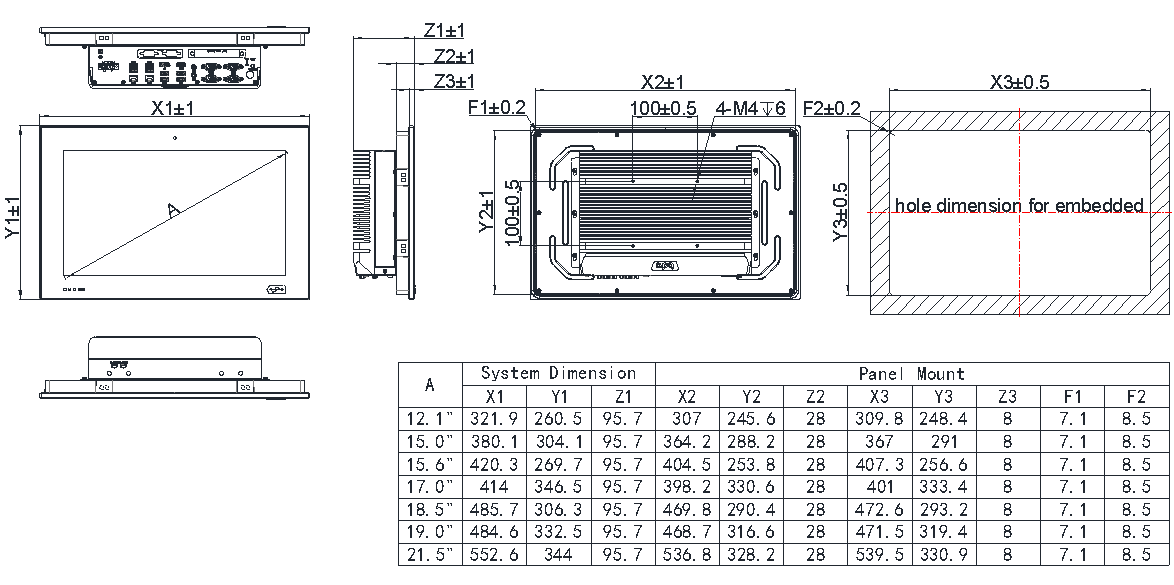

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model		PL121CQ-E7L	PL150CQ-E7L	PL156CQ-E7L	PL170CQ-E7L	PL185CQ-E7L	PL191CQ-E7L	PL215CQ-E7L	PL238CQ-E7L	PL270CQ-E7L
LCD	Display Size	12.1"	15.0"	15.6"	17.0"	18.5"	19.0"	21.5"	23.8"	27.0"
?	Display Type	XGA TFT-LCD	XGA TFT-LCD	FHD TFT-LCD	SXGA TFT-LCD	WXGA TFT-LCD	WXGA TFT-LCD	FHD TFT-LCD	FHD TFT-LCD	FHD TFT-LCD
?	Max.Resolution	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080	1920 x 1080	1920 x 1080
?	Luminance	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	300 cd/m2
?	Aspect Ratio	4:3	4:3	16:9	5:4	16:9	16:10	16:9	16:9	16:9
?	Viewing Angle	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°	89/89/89/89	89/89/89/89
?	Max. Color	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
?	Backlight Lifetime	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr	30,000 Hrs	30,000 Hrs
?	Contrast Ratio	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1	1000:01:00	3000:01:00
Touchscreen	Touch Type	Projected Capacitive Touch
?	Controller	USB signal
?	Input	Finger/Capacitive Touch Pen
?	Light Transmission	≥85%
?	Hardness	≥6H
Processor System	CPU	Intel? 12/13/14th Generation Core / Pentium/ Celeron Desktop CPU
?	TDP	35W
?	Socket	LGA1700
?	Chipset	Q670
?	BIOS	AMI 256 Mbit SPI
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
?	Max Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel? UHD Graphics
Ethernet	Controller	1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45) 1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage	SATA	1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
?	M.2	1 * M.2 Key-M (PCle x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) 1 * M.2 Key-E (PCle x1 Gen 3 + USB 2.0, 2230)
Expansion Slots	aDoor	1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
?	Mini PCIe	2 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card)
Front I/O	Ethernet	2 * RJ45
?	USB	2 * USB3.2 Gen2x1 (Type-A, 10Gbps) 6 * USB3.2 Gen 1x1 (Type-A, 5Gbps)
?	Display	1 * HDMI1.4b: max resolution up to 40962160 @ 30Hz 1 DP1.4a: max resolution up to 4096*2160 @ 60Hz
?	Audio	2 * 3.5mm Jack (Line-Out + MIC)
?	Serial	2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes)
?	Button	1 * Power Button + Power LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button
Rear I/O	Antenna	4 * Antenna hole
?	SIM	1 * Nano SIM card slots(SIM1)
Internal I/O	USB	6 * USB2.0 (wafer)
?	LCD	1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz
?	Front Panel	1 * FPanel (PWR+RST+LED, wafer)
?	Audio	1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
?	Serial	2 * RS232 (COM5/6, wafer)
?	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
?	LPC	1 * LPC (wafer)
?	SATA	3 * SATA 7P Connector, up to 600MB/s
?	SATA Power	3 * SATA Power (wafer)
?	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (KF2510-4A)
Power Supply	Type	DC, AT/ATX
?	Power Input Voltage	9~36VDC, P≤240W 18~60VDC, P≤400W
?	Connector	1 * 4Pin Connector, P=5.00/5.08
?	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
?	Linux	Linux
Watchdog	Output	System Reset
?	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	Radiator: Aluminum alloy, Box: SGCC
?	Mounting	VESA, Embedded
?	Dimensions (L * W * H, Unit: mm)	321.9260.595.7	380.1304.195.7	420.3269.795.7	414346.595.7	485.7306.395.7	484.6332.595.7	552.634495.7	586358.495.7	663.2401.895.7
?	Weight	Net: 6.6 kg Total: 8.1 kg	Net: 8.0 kg Total: 9.5 kg	Net: 7.9 kg Total: 9.6 kg	Net: 8.8 kg Total: 10.3 kg	Net: 8.7 kg Total: 10.2 kg	Net: 10.0 kg Total: 11.5 kg	Net: 9.6 kg Total: 11.1 kg	Net: 11 kg Total: 12.5 kg	Net: 12.1 kg Total: 13.6 kg
Environment	Heat Dissipation System	Fanless Passive Cooling
?	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃	0~50℃	0~50℃	0~50℃	0~50℃
?	Storage Temperature	-30~80℃	-20~70℃	-30~70℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
?	Relative Humidity	10 to 95% RH (non-condensing)
?	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
?	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
?	Certification	CE/FCC, RoHS
