阿普奇 IPC400-H470 多USB資源型4U上架式工控機
產品概述
阿普奇 IPC400-H470 是一款多USB資源的4U上架式工控機，基于 H470 平臺，支持 Intel 10/11 代 Core/Pentium/Celeron 桌面級 CPU。產品突出PCI/PCIe擴展、多硬盤位和2個RJ45，其中含2.5G網口能力，適合同時部署圖像采集卡、運動控制卡、高速網卡、I/O卡或串口通信卡。標準4U機箱支持7槽位全高卡和最多8個3.5英寸硬盤位，便于系統集成商在機器視覺、數據采集、工業測控、設備聯網和產線控制項目中構建穩定的核心控制平臺。
|
Model |
IPC400-H470 |
|
|
Processor System |
CPU | Support Intel??10/11th Generation Core / Pentium/ Celeron Desktop CPU |
| ? | TDP | 125W |
| ? | Socket | LGA1200 |
| ? | Chipset | H470 |
| ? | BIOS | AMI 256 Mbit SPI |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz |
| ? | Capacity | 64GB, Single Max. 32GB |
|
Graphics |
Controller | Intel? HD Graphics |
|
Ethernet |
Controller | 1 * Intel i225-V LAN Chip (10/100/1000/2500 Mbps, RJ45) 1 * Intel i219-LM GBE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 3 * SATA3.0 7P Connector |
| ? | M.2 | 1 * M.2 Key-M Slot (PCIe 3.0 x4 + SATA 3.0, NVMe/ SATA SSD Auto Detect, 2242/2260/2280) |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot (Gen 3, x16 signal)
1 * PCIe x4 slot (Gen 3, x1?signal) 1 * PCIe x4 slot (Gen 3, x1?signal) |
| ? | PCI | 4?* PCI slot |
| ? | Mini PCIe | 1 * Mini PCIe (PCIe 3.0x1+USB 2.0, with 1 * SIM Card slot) |
|
Front I/O |
Ethernet | 2 * RJ45 |
| ? | USB | 4 * USB?5Gbps?(Type-A, 5Gbps, 2 ports for a total of 3A) 2 * USB2.0 (Type-A, 2 ports for a total of 2A) |
| ? | PS/2 | 1 * PS/2 (Keyboard & Mouse) |
| ? | Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz |
| ? | Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) |
| ? | Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| ? | Button | 1 * Power Button |
| ? | LED | 1 * Power status LED
1 * Hard drive status LED |
|

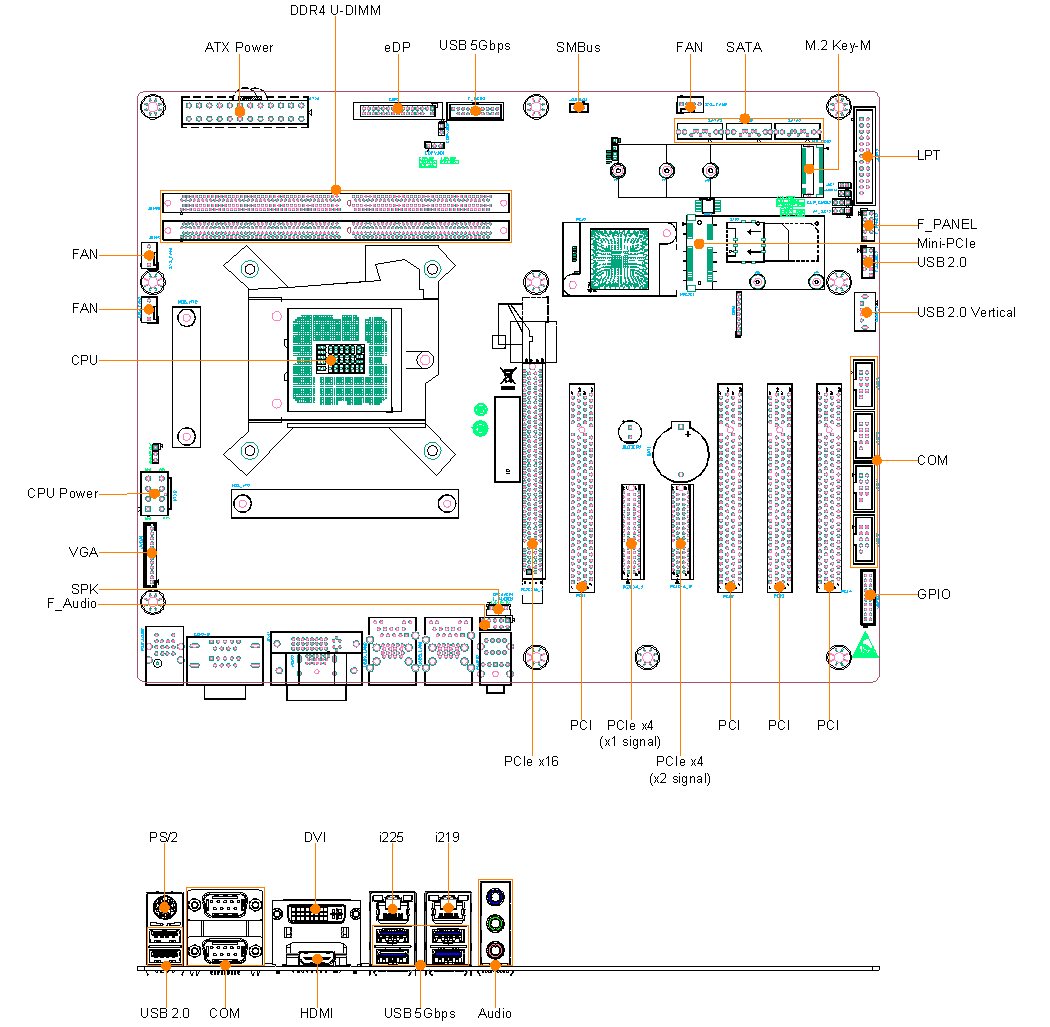

Internal I/O |
USB | 2 * USB?5Gbps?(F_USB3, wafer) 1 * USB2.0 (USB2_1, Vertical type connector) 2 * USB2.0 (F_USB2_1, header) |
|
? |
COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) |
|
? |
Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) |
| ? | Audio | 1 * Front Audio (Line-Out + MIC, Header)
1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) |
| ? | GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) |
| ? | SATA | 3 * SATA 7P Connector |
| ? | LPT | 1 * LPT (Header) |
| ? | FAN | 2 * SYS FAN (Header)
1 * CPU FAN (Header) |
|
Power Supply |
Type | ATX |
| ? | Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided |
| ? | RTC Battery | CR2032 Coin Cell |
|
OS Support |
Windows | Windows 10/11 |
|
? |
Linux | Linux |
|
Watchdog |
Output | System Reset |
| ? | Interval | Programmable 1 ~ 255 sec |
|
Mechanical |
Enclosure Material | SGCC |
| ? | Dimensions | 482.6mm(L) * 464.5mm(W) * 177mm(H) |
| ? | Mounting | Shelf mounted installation |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| ? | Operating Temperature | 0 ~ 50℃ |
| ? | Storage Temperature | -20 ~ 70℃ |
| ? | Relative Humidity | 10 to 95% RH (non-condensing) |
-
