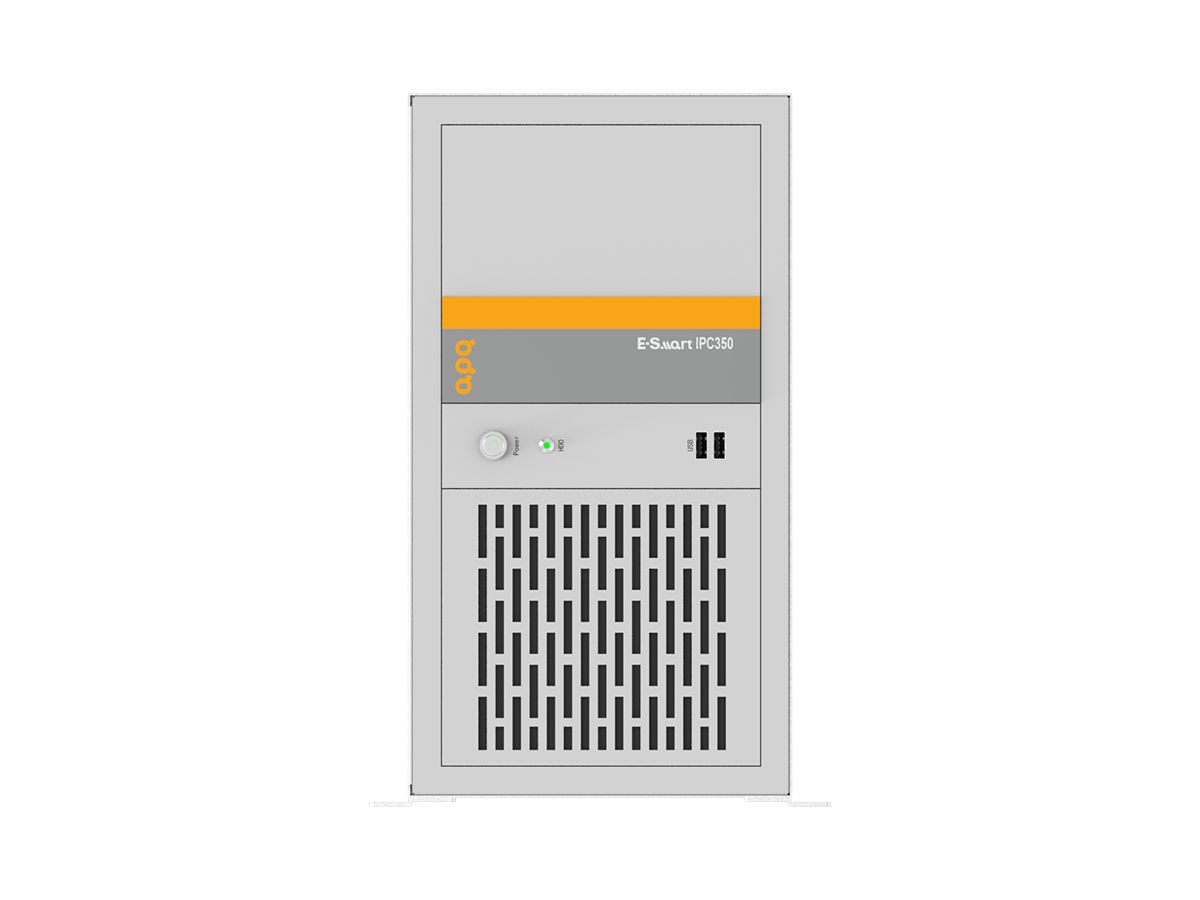

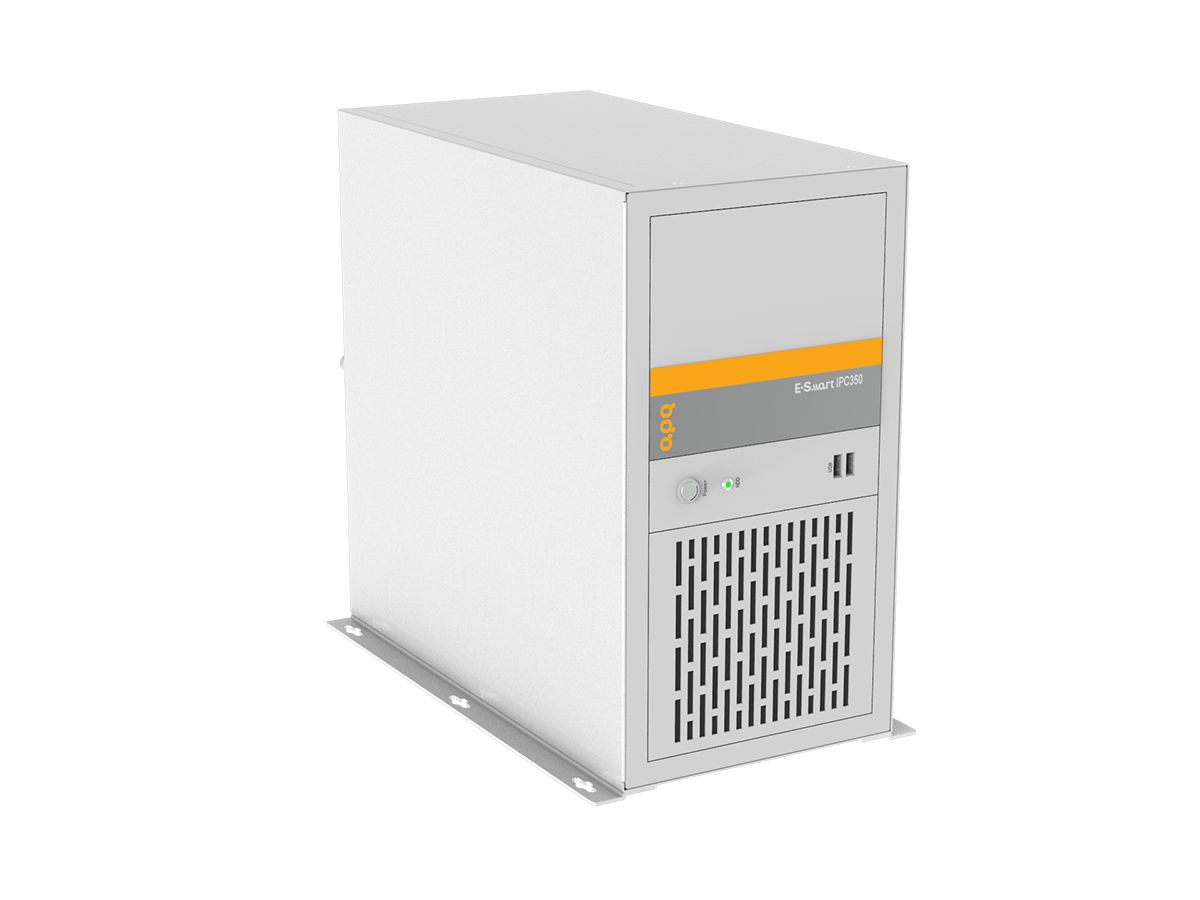

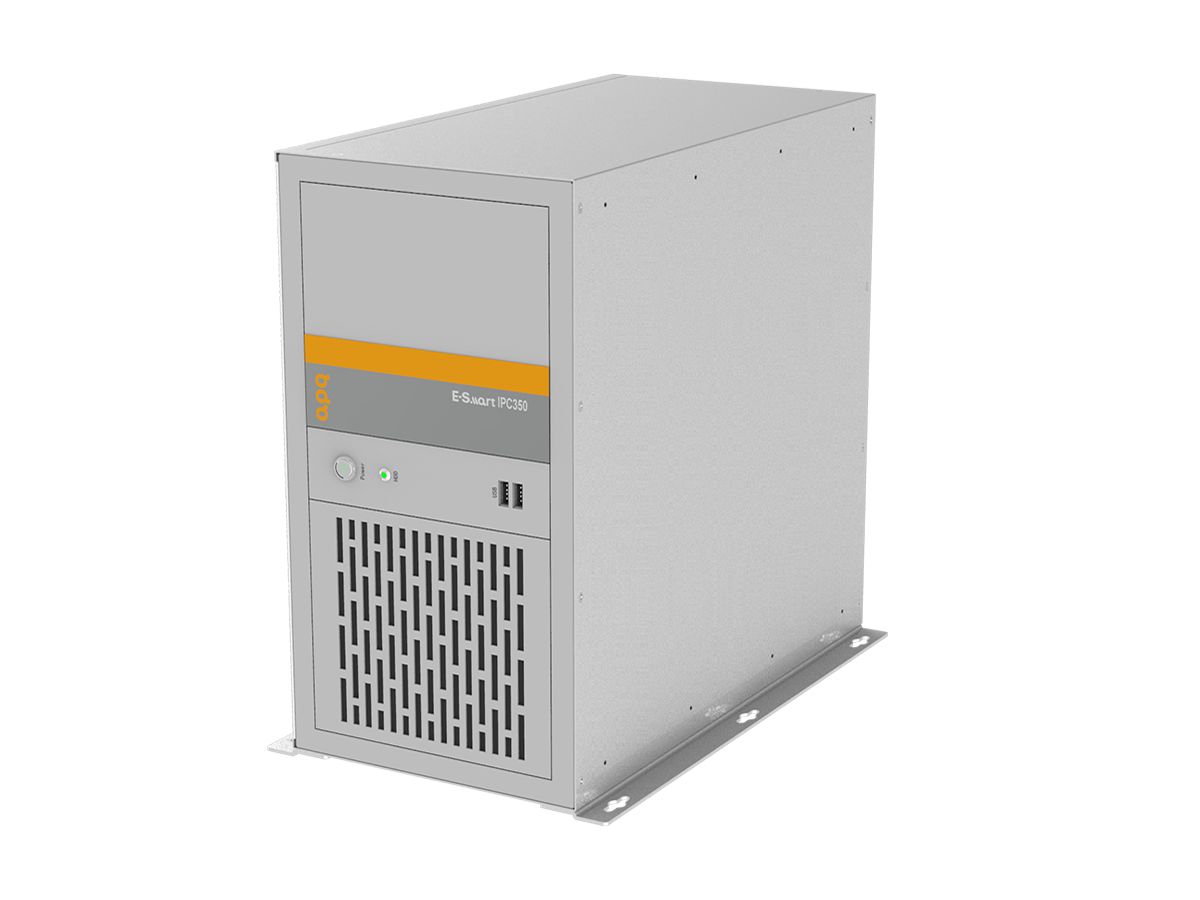

阿普奇 IPC350-H470 高擴展多卡采集壁掛式工控機

特點:

緊湊型小4U機箱
支持Intel? 10/11th Generation Core/Pentium/Celeron Desktop CPU
安裝標準ATX主板，支持標準4U電源
最多支持7槽位全高卡擴展，滿足多行業應用需求
人性化設計，機箱前置系統風扇免工具維護
精心設計的免工具PCIe擴展卡固定架、具有更高的抗震性
最多可選2個3.5英寸抗震抗沖擊硬盤位
前?板USB、開關機設計，電源及存儲狀態顯?，更易于系統維護

遠程管理
狀態監控
遠程運維
安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

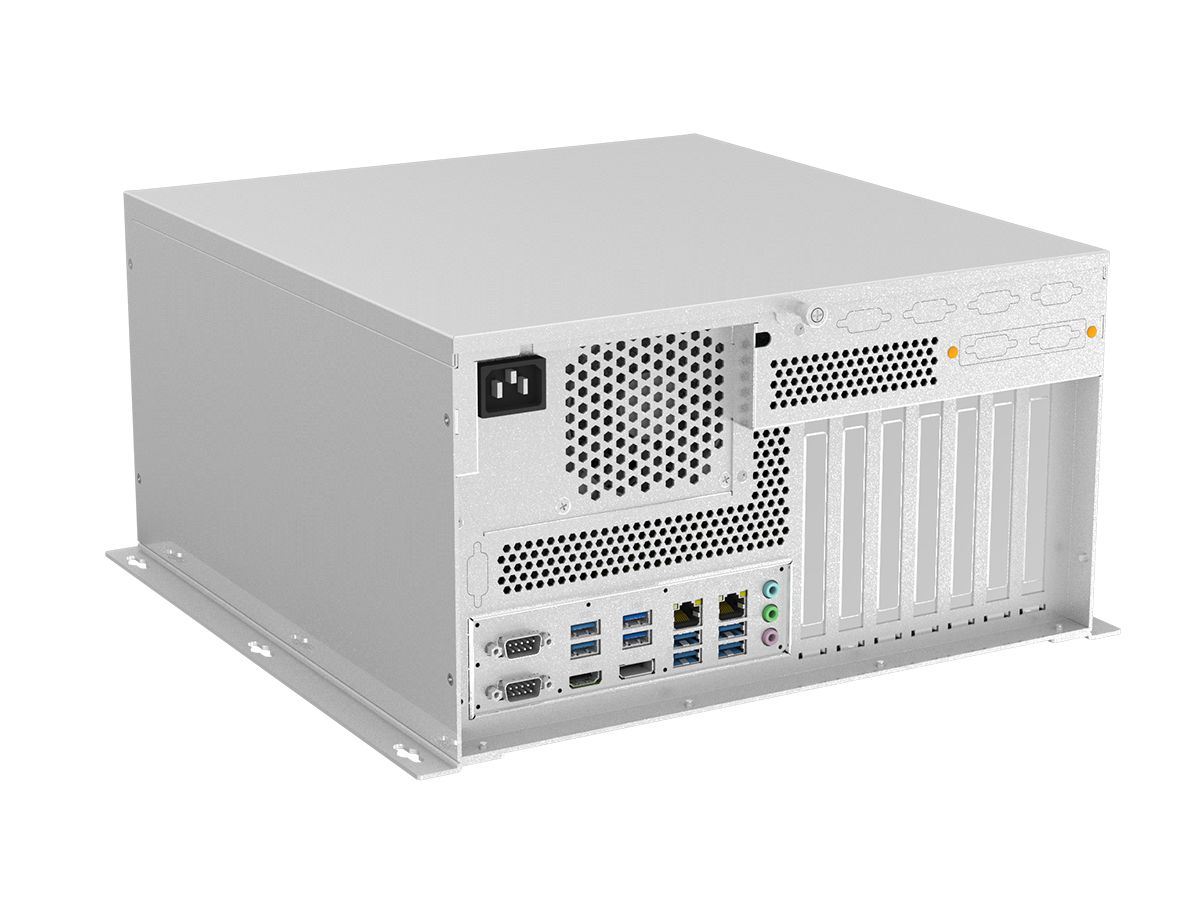

阿普奇 IPC350-H470 高擴展多卡采集壁掛式工控機

產品概述

IPC350-H470 是一款面向多板卡采集與復雜控制的小4U壁掛式工控機，基于 H470 平臺，支持 Intel 10/11 代 Core/Pentium/Celeron 桌面級 CPU。產品突出PCI/PCIe擴展、多硬盤位和2個RJ45，其中含2.5G網口能力，適合同時部署圖像采集卡、運動控制卡、高速網卡、I/O卡或串口通信卡。小4U緊湊機箱支持最多7槽位全高卡擴展，便于系統集成商在機器視覺、數據采集、工業測控、設備聯網和產線控制項目中構建穩定的核心控制平臺。

產品介紹

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model	IPC350-H470
Processor System	CPU	Support Intel^??10/11th Generation Core / Pentium/ Celeron Desktop CPU
?	TDP	125W
?	Socket	LGA1200
?	Chipset	H470
?	BIOS	AMI 256 Mbit SPI
Memory	Socket	2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz
?	Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel? HD Graphics
Ethernet	Controller	1 * Intel i225-V LAN Chip (10/100/1000/2500 Mbps, RJ45) 1 * Intel i219-LM GBE LAN Chip (10/100/1000 Mbps, RJ45)
Storage	SATA	3 * SATA3.0 7P Connector
?	M.2	1 * M.2 Key-M Slot (PCIe 3.0 x4 + SATA 3.0, NVMe/ SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots	PCIe	1 * PCIe x16 slot (Gen 3, x16 signal) 1 * PCIe x4 slot (Gen 3, x1 signal) 1 * PCIe x4 slot (Gen 3, x1 signal)
?	PCI	4 * PCI slot
?	Mini PCIe	1 * Mini PCIe (PCIe 3.0x1+USB 2.0, with 1 * SIM Card slot)

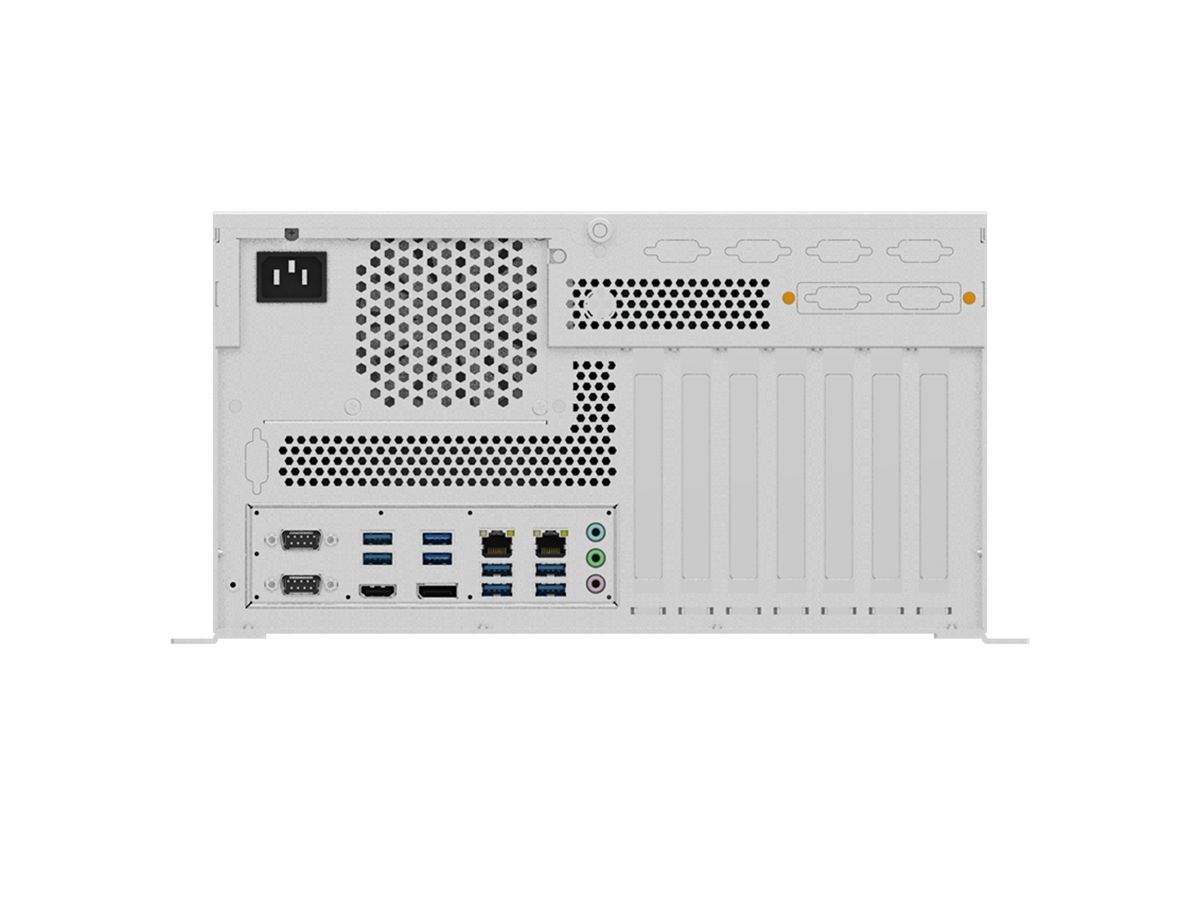

Front I/O	Ethernet	2 * RJ45
?	USB	4 * USB 5Gbps (Type-A, 5Gbps, 2 ports for a total of 3A) 2 * USB2.0 (Type-A, 2 ports for a total of 2A)
?	PS/2	1 * PS/2 (Keyboard & Mouse)
?	Display	1 * DVI-D: max resolution up to 19201200 @ 60Hz 1 HDMI1.4: max resolution up to 3840*2160 @ 30Hz
?	Audio	3 * 3.5mm Jack (Line-out + Line-in + MIC)
?	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)

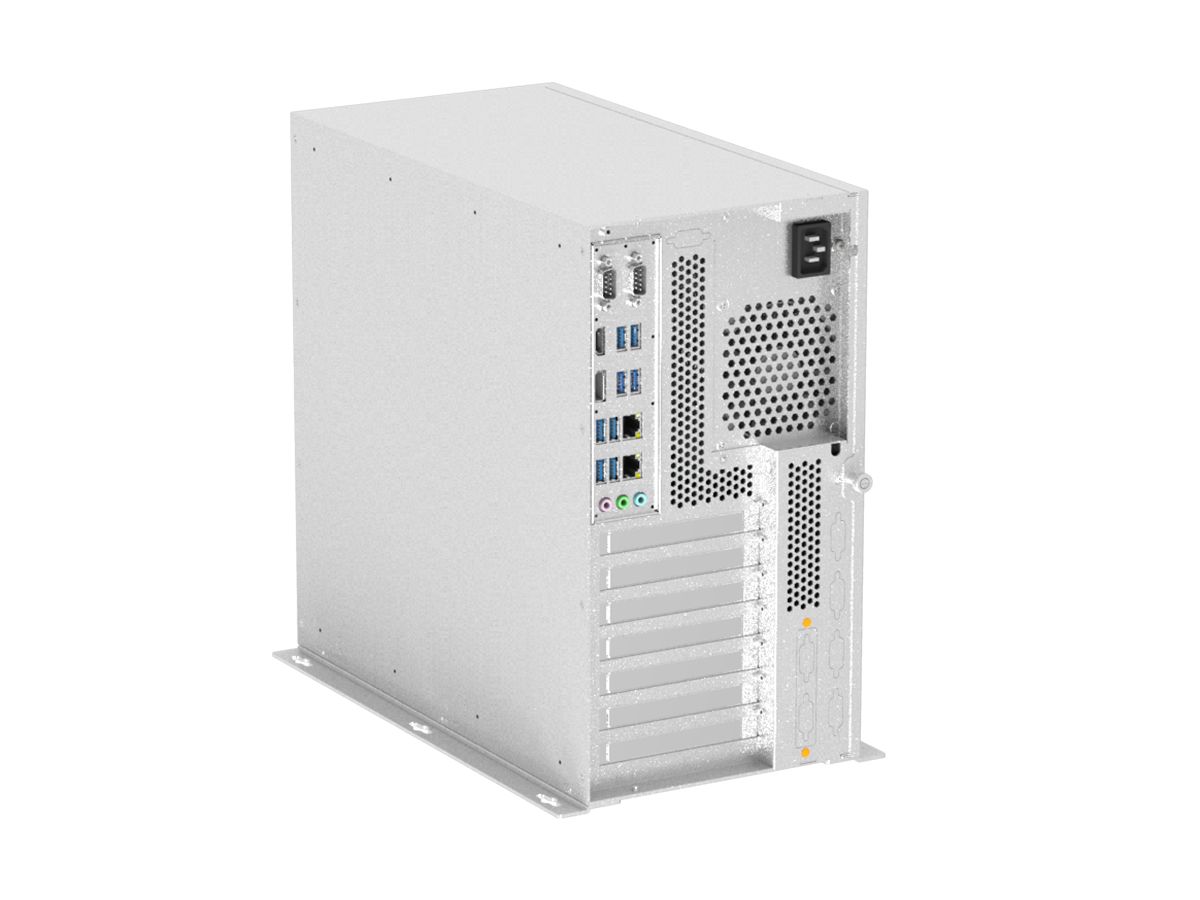

Rear I/O	USB	2 * USB2.0 (Type-A)
?	Button	1 * Power Button
?	LED	1 * Power status LED 1 * Hard drive status LED
Internal I/O	USB	2 * USB 5Gbps (F_USB?5Gbps, wafer) 1 * USB2.0 (USB2_1, Vertical type connector) 2 * USB2.0 (F_USB2_1, header)
?	COM	4 * RS232 (COM3/4/5/6, Header, Full Lanes)
?	Display	1 * VGA: max resolution up to 19201200 @ 60Hz (wafer) 1 eDP: max resolution up to 1920*1200 @ 60Hz (Header)
?	Audio	1 * Front Audio (Line-Out + MIC, Header) 1 * Speaker (3W (per channel) into a 4Ω Loads, wafer)
?	GPIO	1 * 16 bits DIO (8DI and 8DO, wafer)
?	SATA	3 * SATA 7P Connector
?	LPT	1 * LPT (Header)
?	FAN	2 * SYS FAN (Header) 1 * CPU FAN (Header)
Power Supply	Type	ATX
?	Power Input Voltage	AC power supply, voltage and frequency shall be based on the ATX power supply provided
?	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
?	Linux	Linux
Watchdog	Output	System Reset
?	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	SGCC
?	Dimensions	330mm(L) * 351mm(W) * 180mm(H)

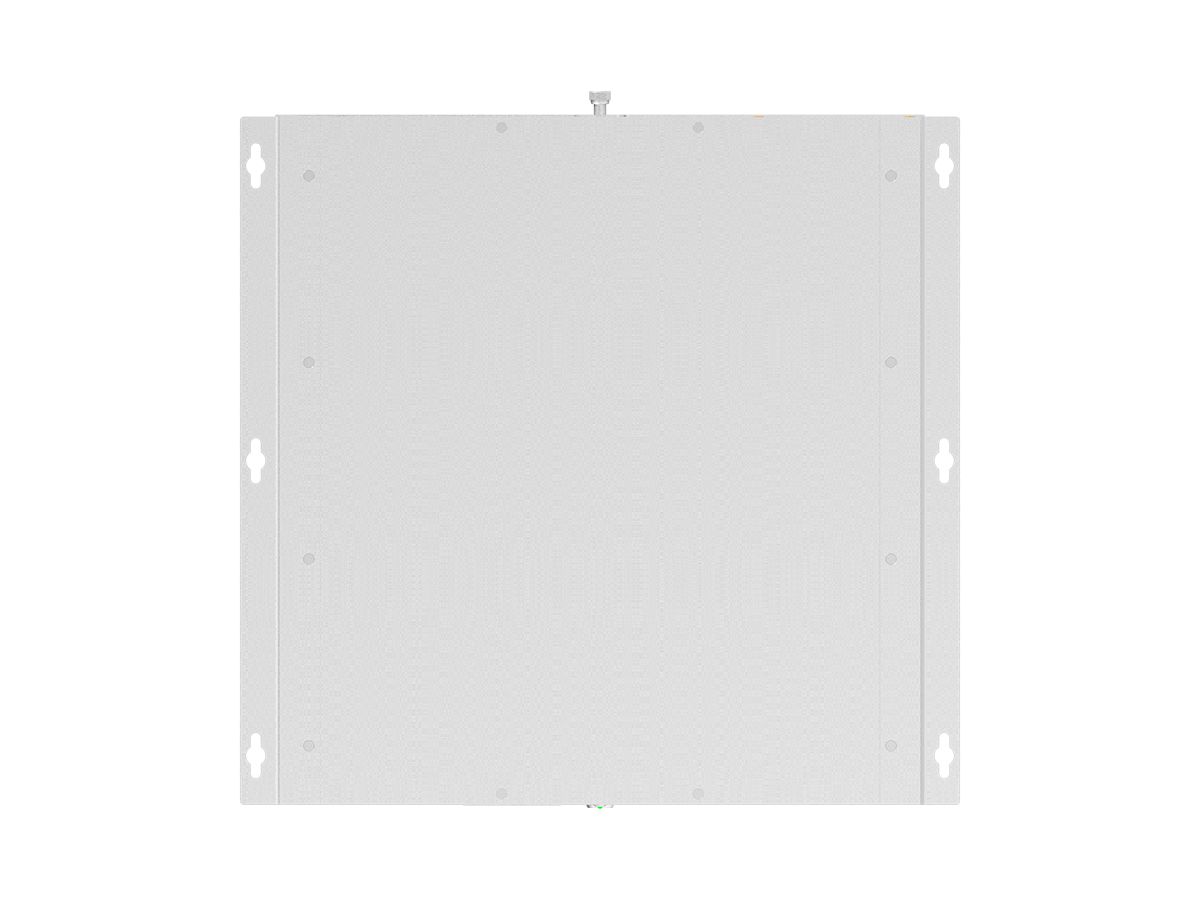

?	Mounting	Wall mounted, Desktop
Environment	Heat Dissipation System	PWM fan cooling
?	Operating Temperature	0 ~ 50℃
?	Storage Temperature	-20 ~ 70℃
?	Relative Humidity	10 to 95% RH (non-condensing)
