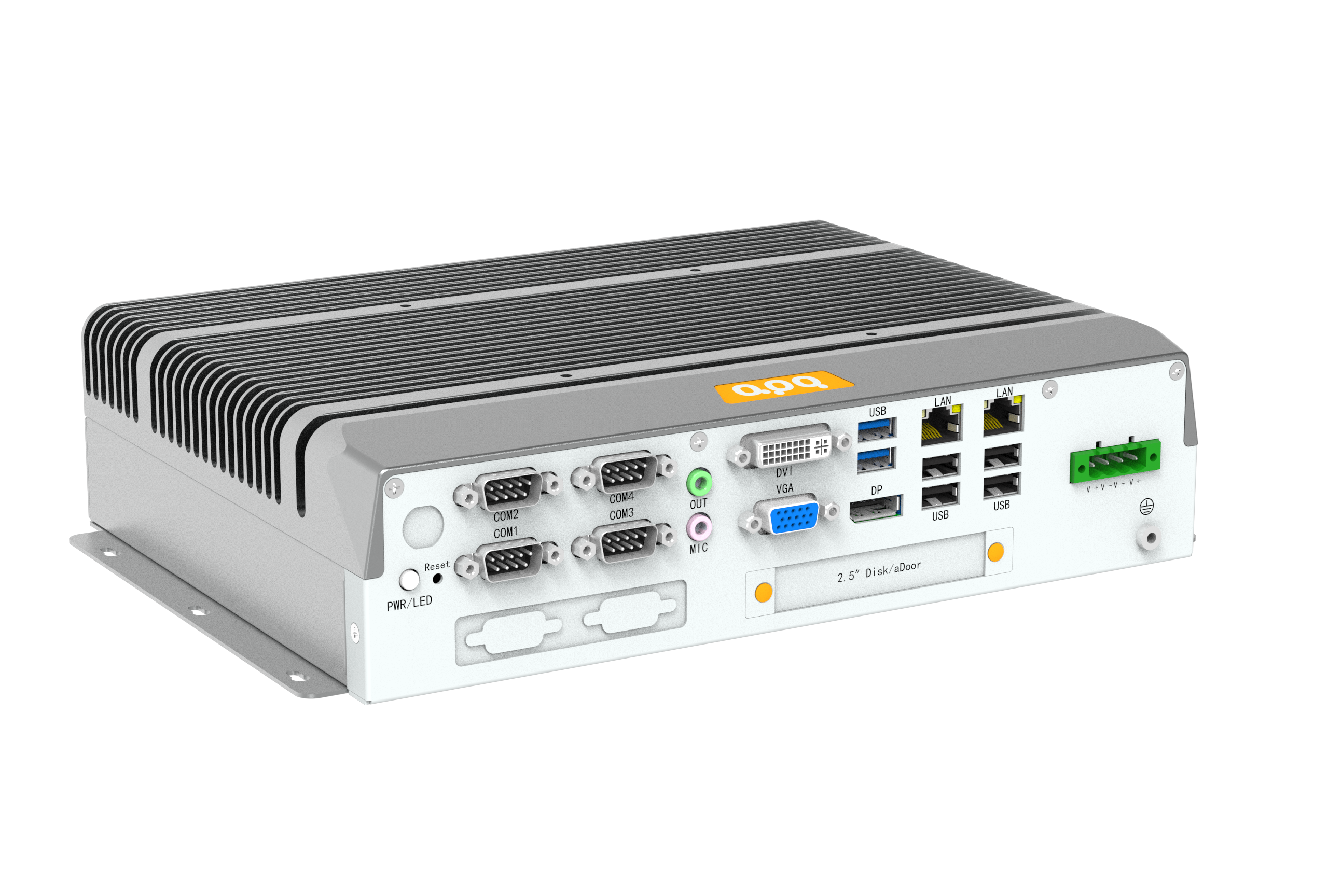

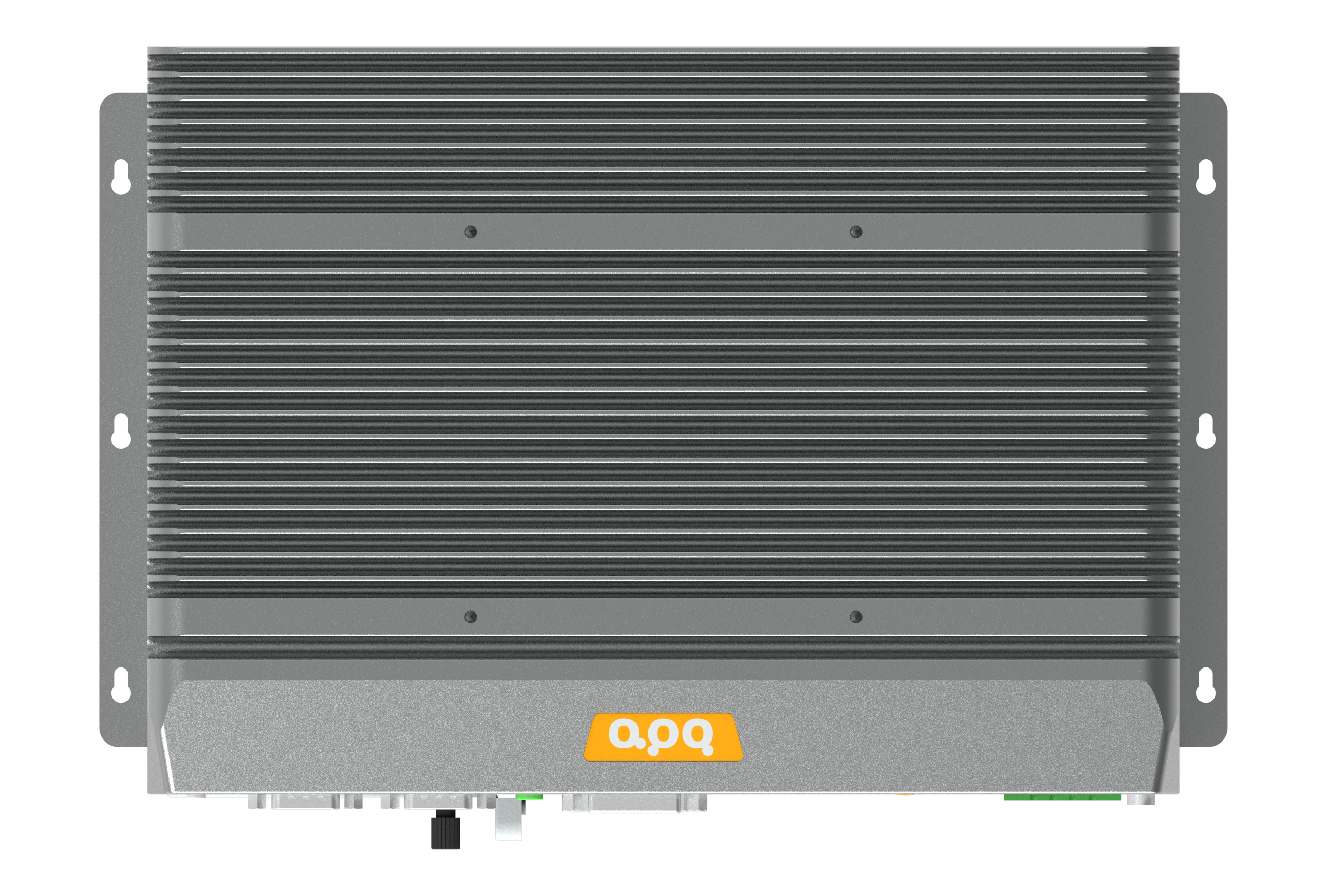

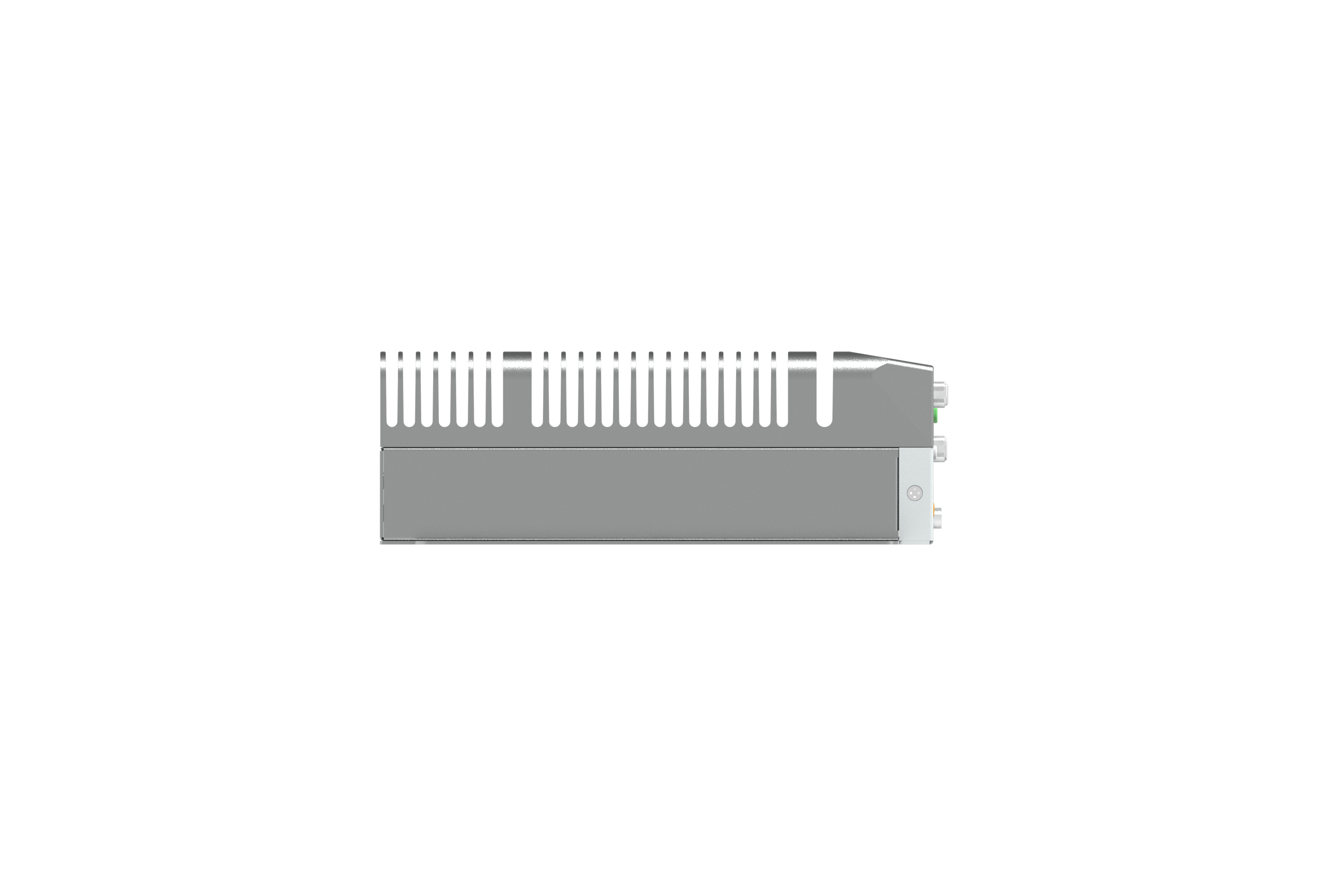

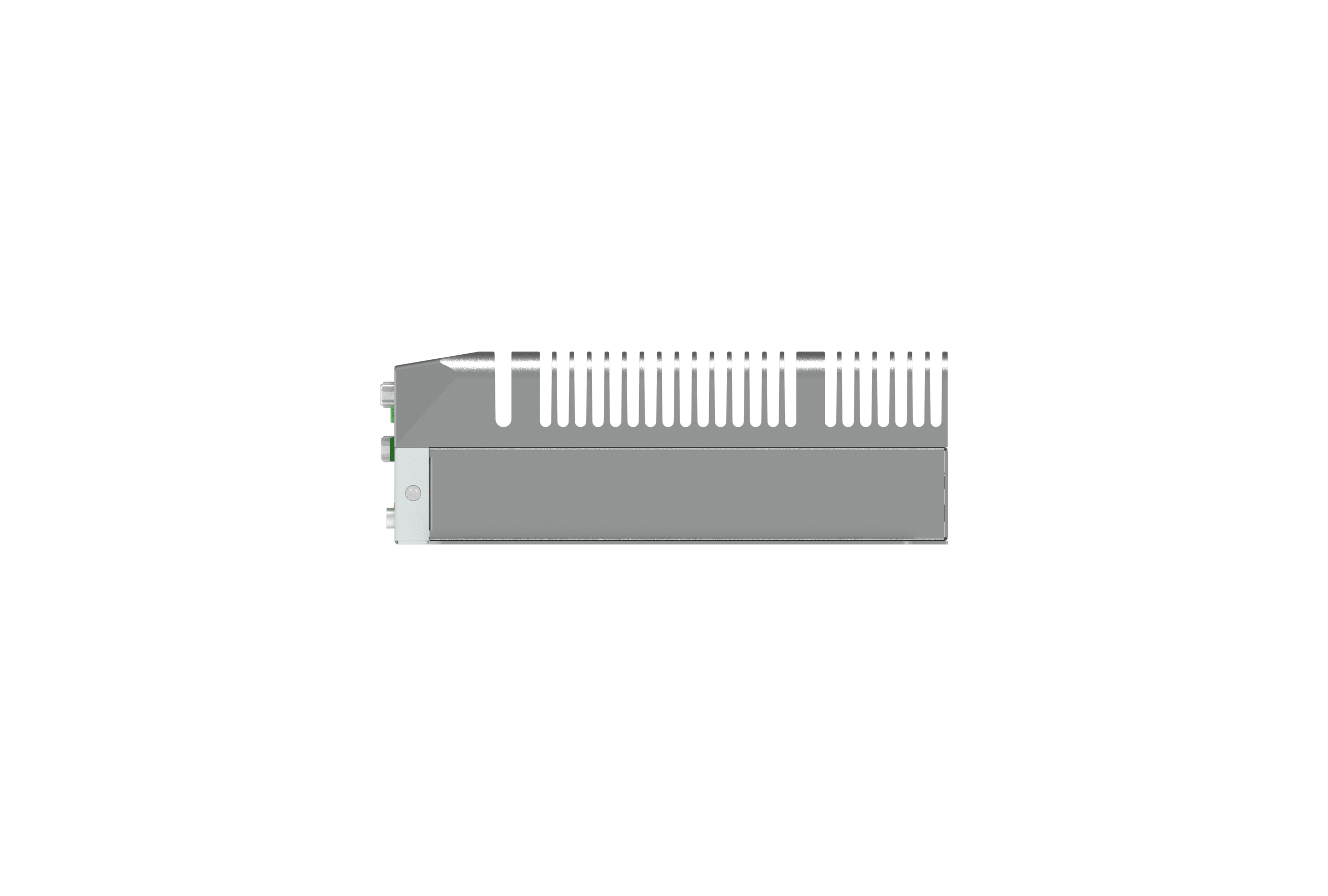

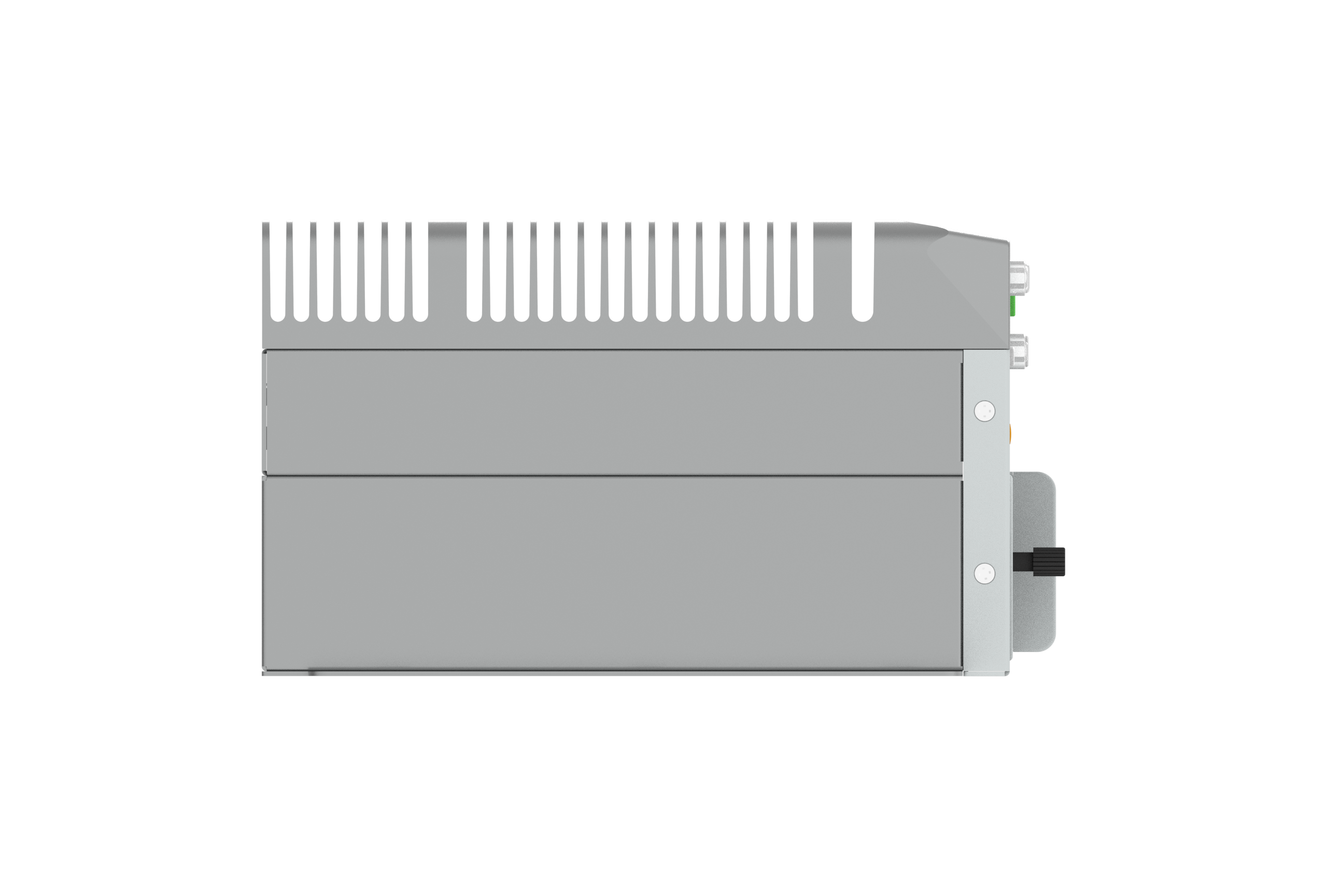

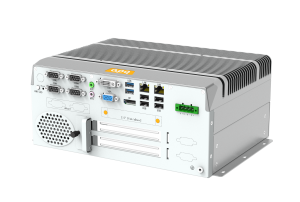

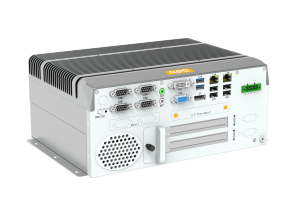

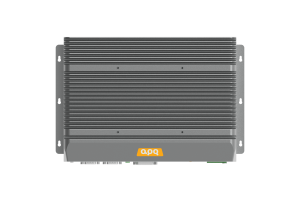

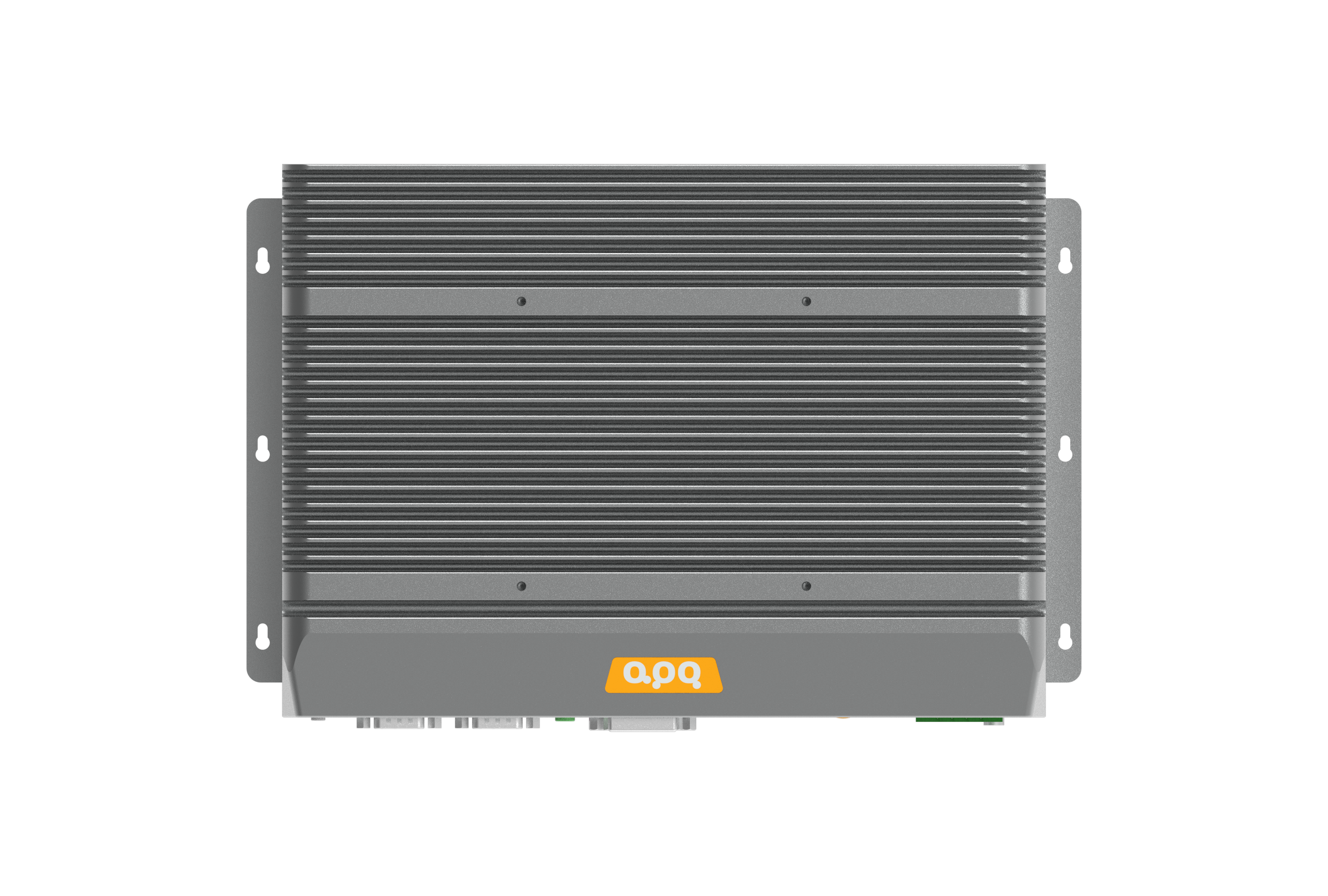

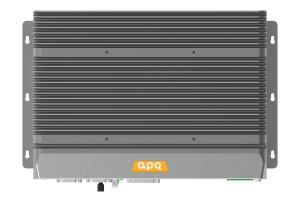

阿普奇 E7L-H81 嵌入式工控機 / BOX
|
Model |
E7L |
E7DL |
|
|
CPU |
CPU | Intel? 4/5th Generation Core / Pentium/ Celeron Desktop CPU | |
|
? |
TDP | 35W | |
|
? |
Socket | LGA1150 | |
|
Chipset |
Chipset | Intel? H81 | |
|
BIOS |
BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz | |
|
? |
Max Capacity | 16GB, Single Max. 8GB | |
|
Graphics |
Controller | Intel? HD Graphics | |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
|
Storage |
SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm) 1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional) |
|
|
? |
M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | |
|
Expansin Slots |
PCIe/PCI | N/A | ①: 1 * PCIe x16 (x16)
②: 2 * PCI PS: ①、②One out of two, Expansion card length ≤ 185mm, TDP ≤ 130W |
|
? |
MXM/aDoor | 1 * APQ MXM ?(Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
1 * aDoor Expansion Slot |
|
|
? |
Mini PCIe | 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card) | |
|

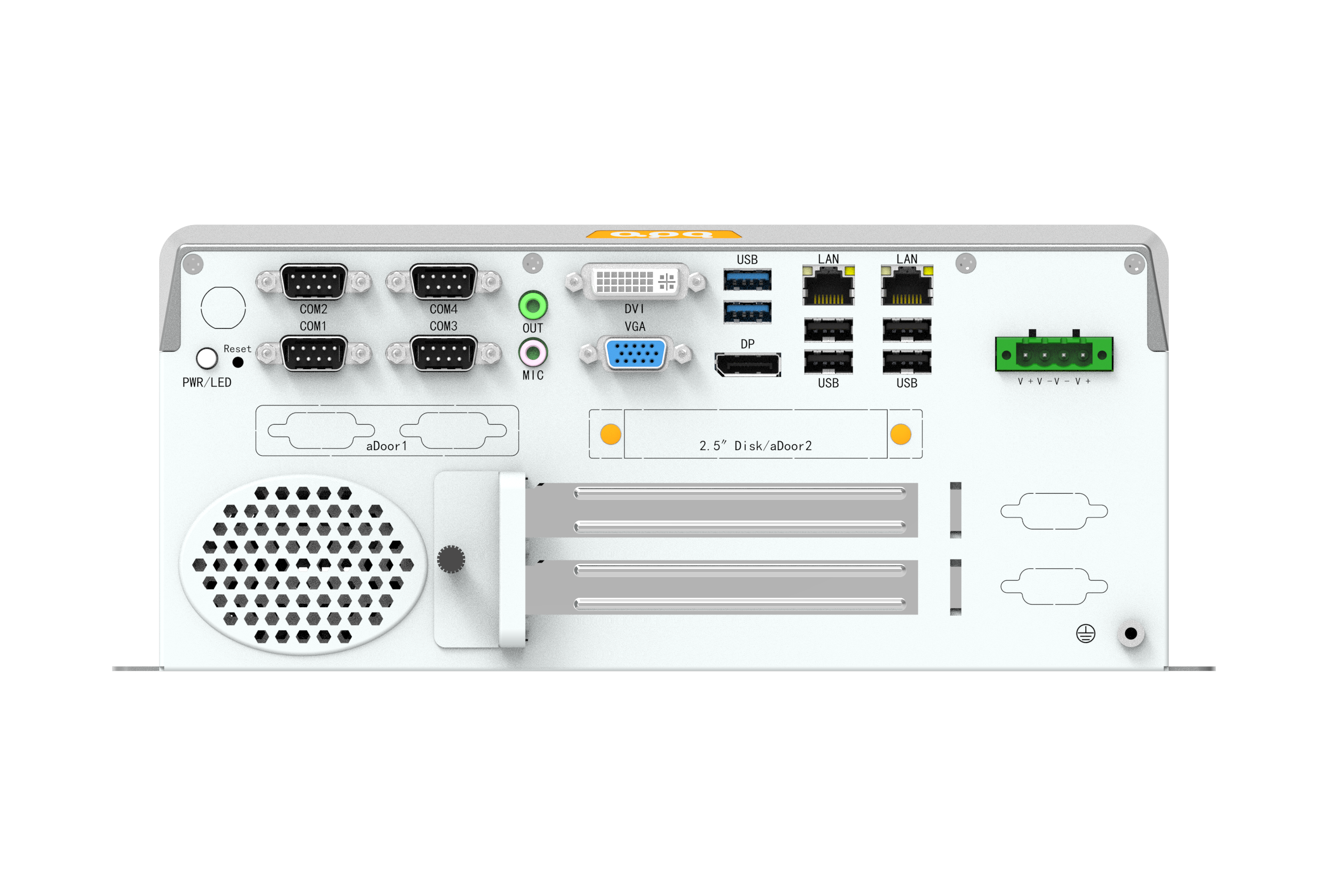

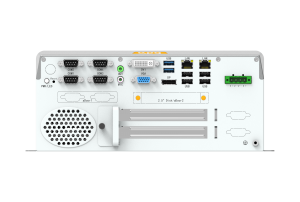

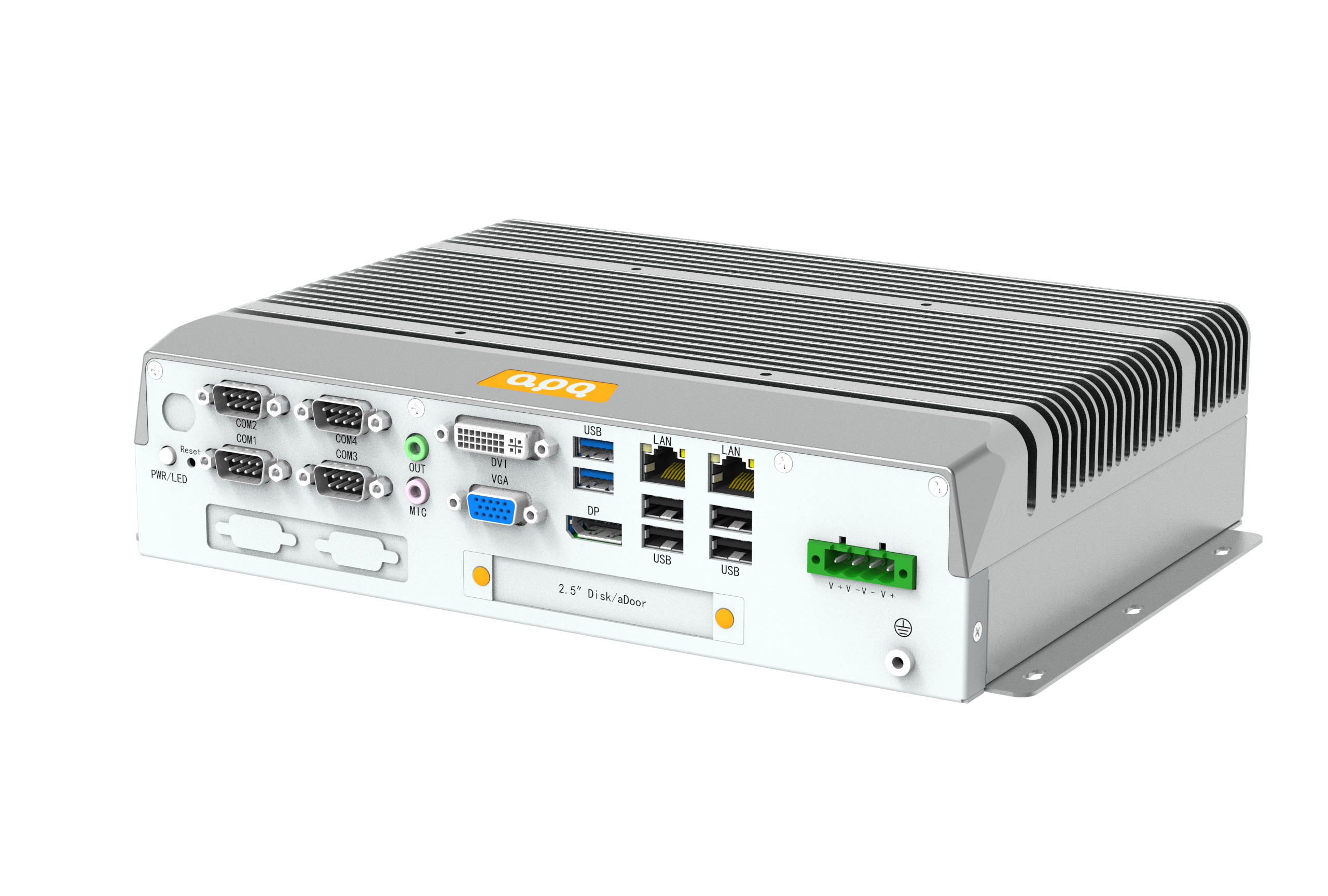

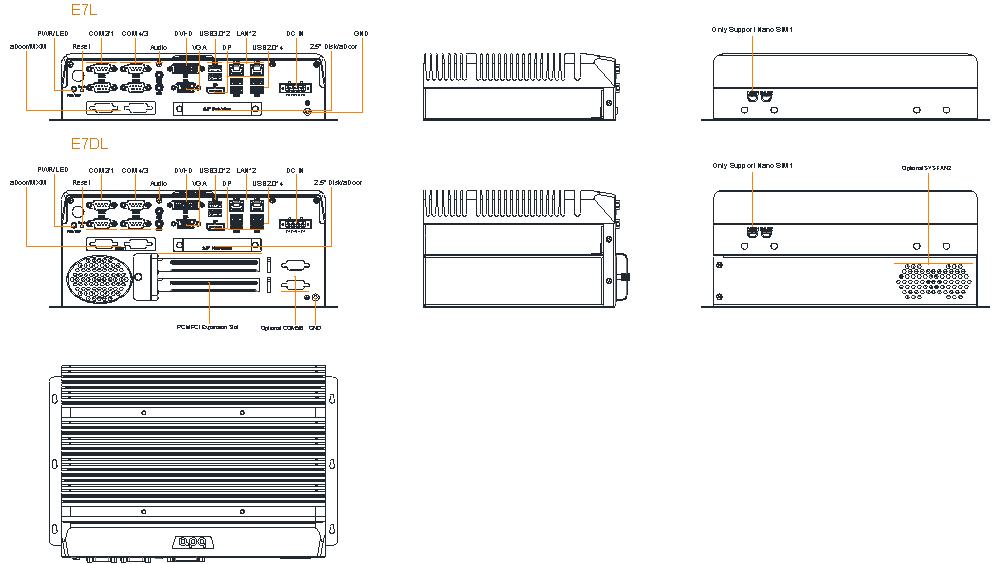

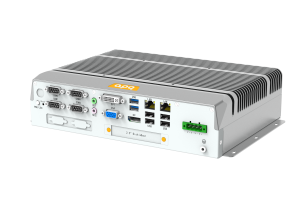

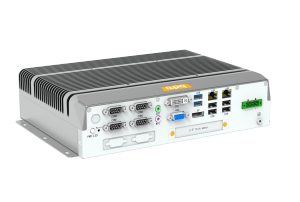

Front I/O |
Ethernet | 2 * RJ45 | |
|
? |
USB | 2 * USB3.0 (Type-A, 5Gbps)
4 * USB2.0 (Type-A) |
|
|
? |
Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz |
|
|
? |
Audio | 2 * 3.5mm Jack (Line-Out + MIC) | |
|
? |
Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M) |
|
|
? |
Button | 1 * Power Button + Power LED
1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) |
|
|

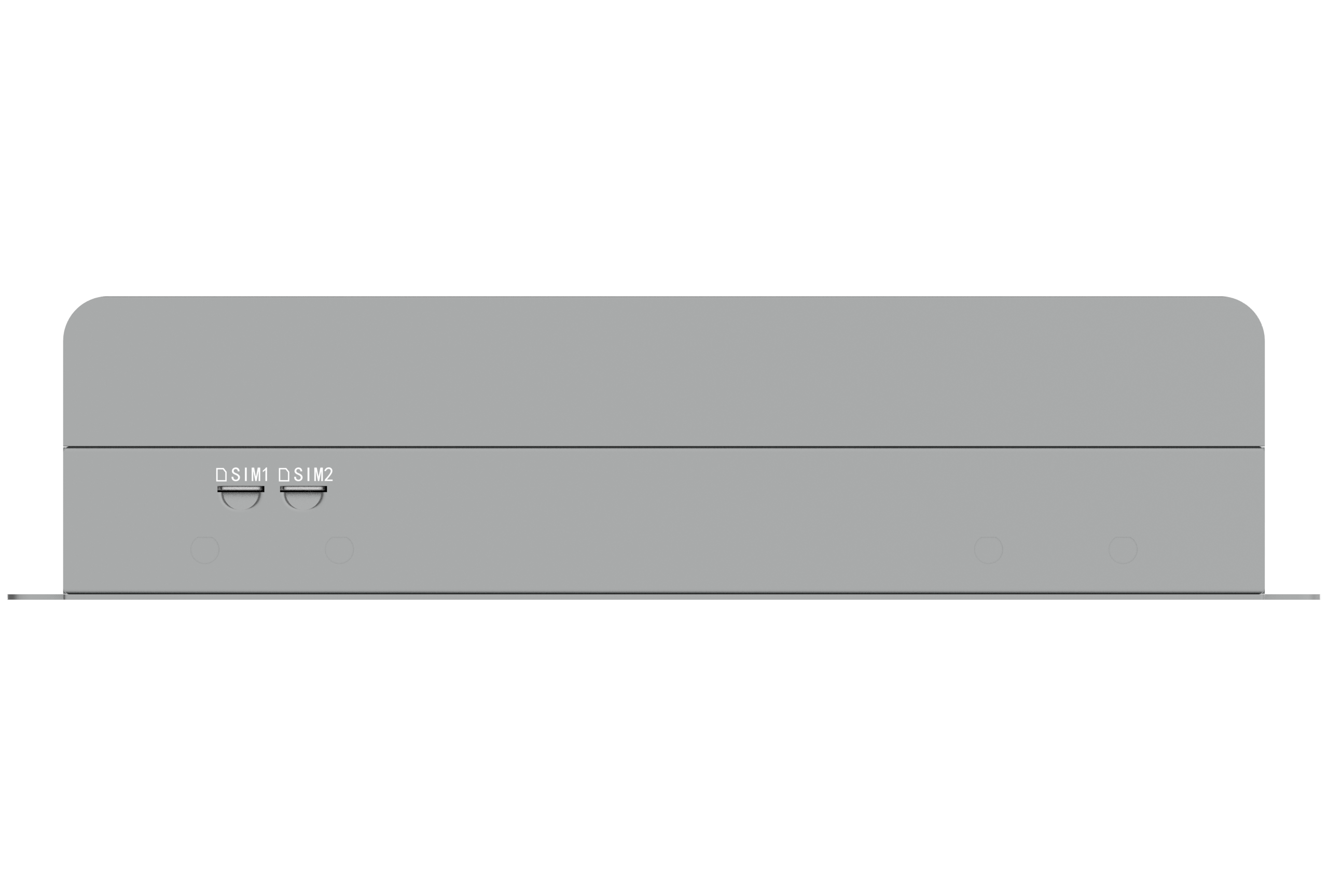

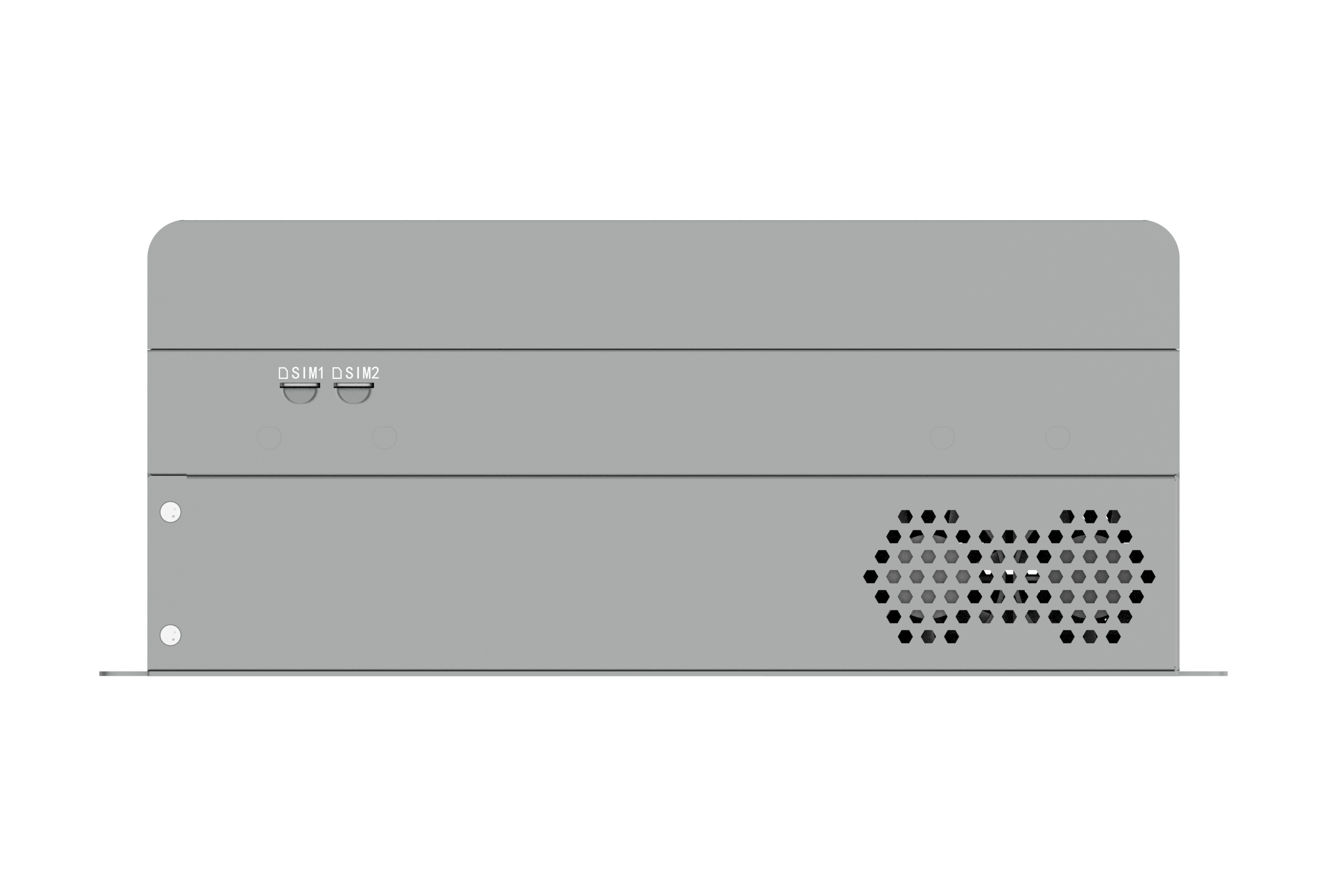

Rear I/O |
Antenna | 4 * Antenna hole | |
|
? |
SIM | 1 * Nano SIM card slot (SIM1) | |
|
Internal I/O |
USB | 2 * USB2.0 (wafer) | |
|
? |
LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | |
|
? |
TFront Panel | 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer) | |
|
? |
Front Panel | 1 * Front Panel (PWR + RST + LED, wafer) | |
|
? |
Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | |
|
? |
Serial | 2 * RS232 (COM5/6, wafer) | |
|
? |
GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | |
|
? |
LPC | 1 * LPC (wafer) | |
|
? |
SATA | 2 * SATA 7P Connector | |
|
? |
SATA Power | 2 * SATA Power (SATA_PWR1/2, wafer) | |
|
? |
FAN | 1 * CPU FAN (wafer) 2 * SYS FAN (wafer) |
|
|
Power Supply |
Type | DC, AT/ATX | |
|
? |
Power Input Voltage | 9 ~ 36VDC, P≤240W | |
|
? |
Connector | 1 * 4Pin Connector, P=5.00/5.08 | |
|
? |
RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/10/11 | |
|
? |
Linux | Linux | |
|
Watchdog |
Output | System Reset | |
|
? |
Interval | Programmable via Software from 1 to 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC | |
|
? |

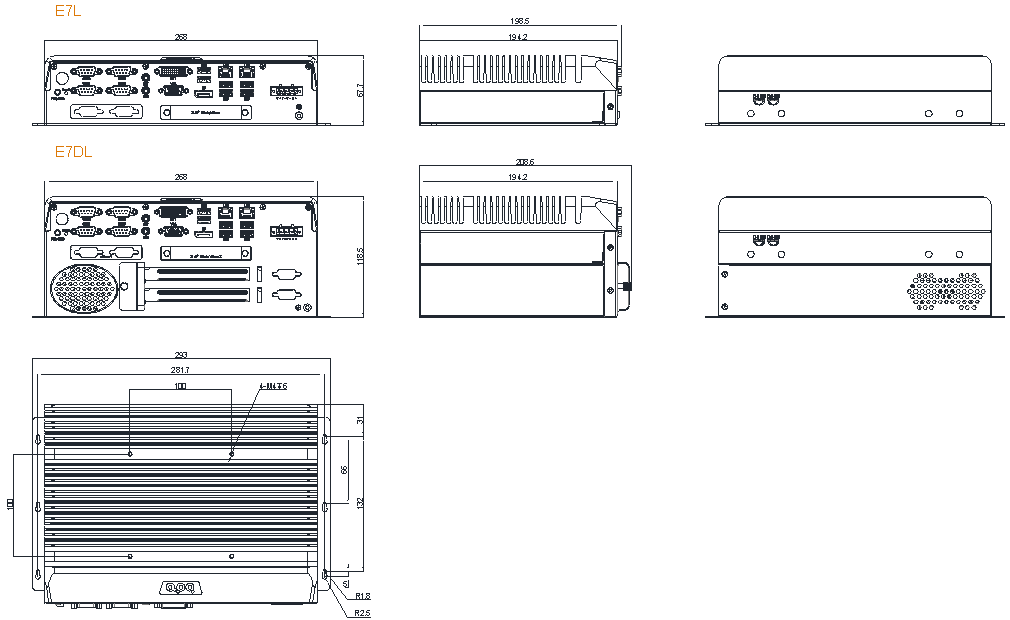

Dimensions | 268mm(L) * 194.2mm(W) * 67.7mm(H) | 268mm(L) * 194.2mm(W) * 118.5mm(H) |
|
? |
Weight | Net: 4.5 kg
Total: 6 kg (Include packaging) |
Net: 4.7kg
Total: 6.2 kg (Include packaging) |
|
? |

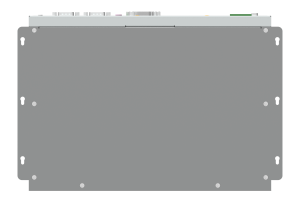

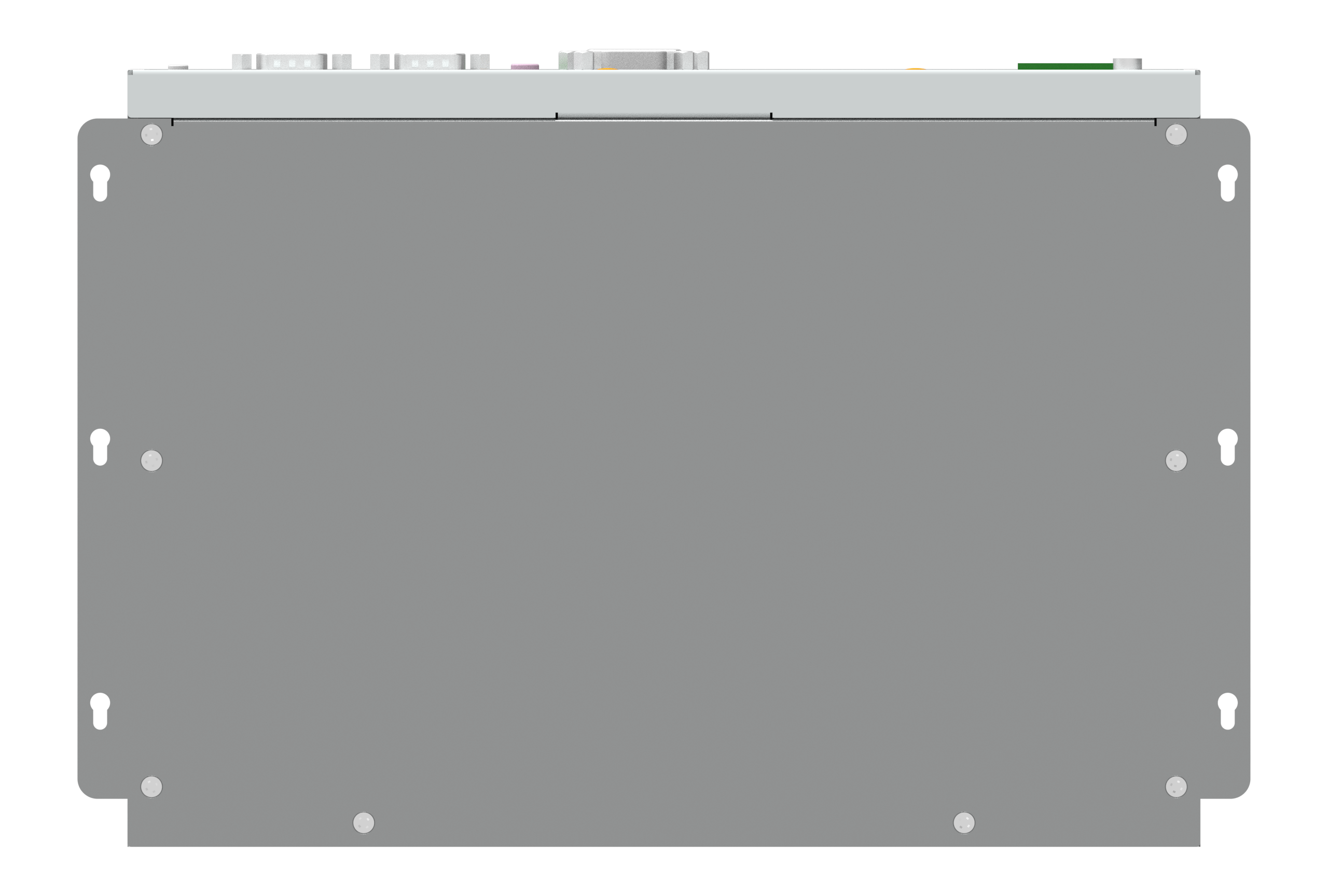

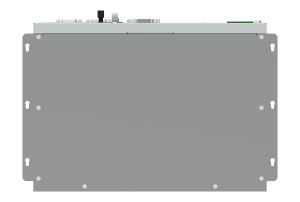

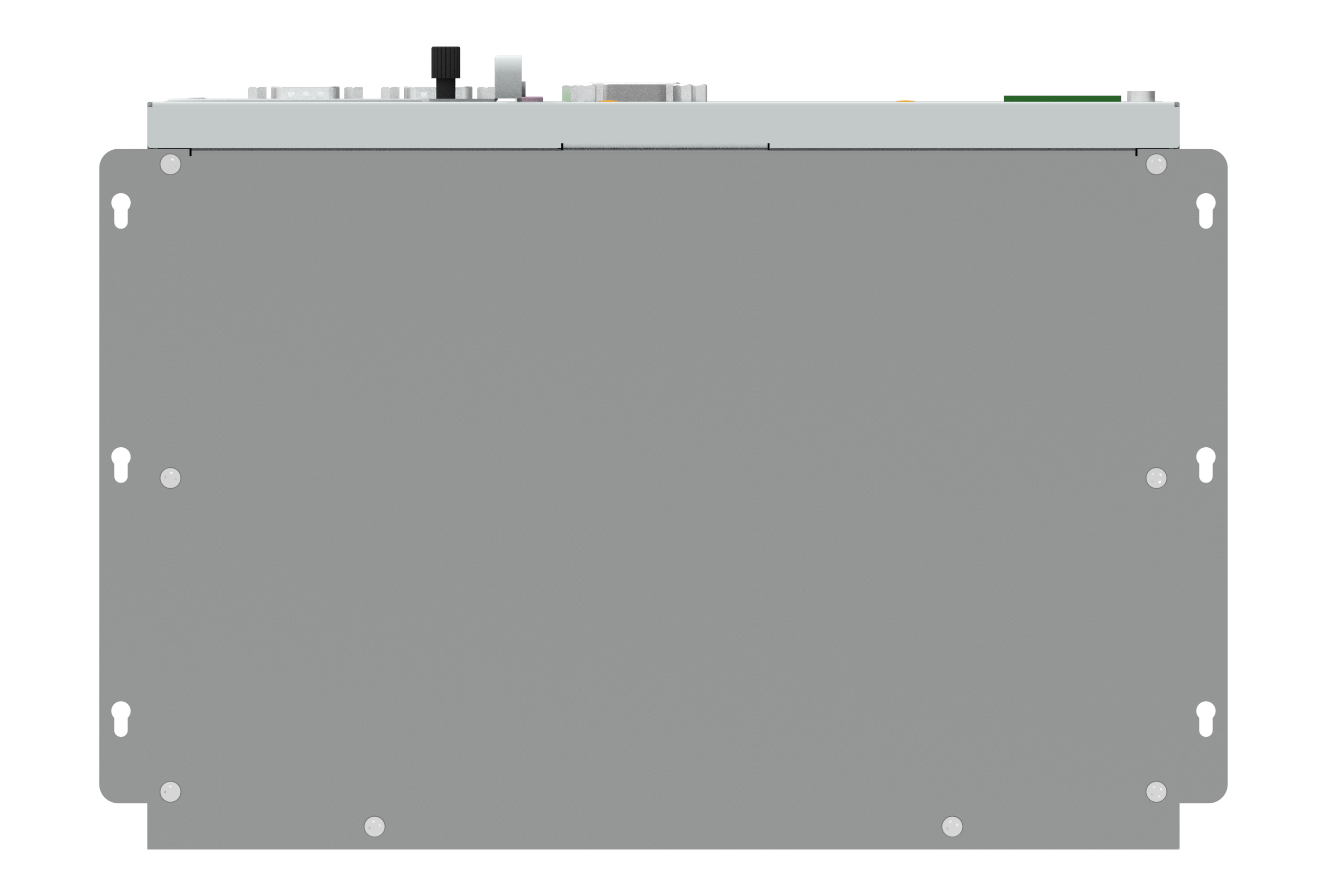

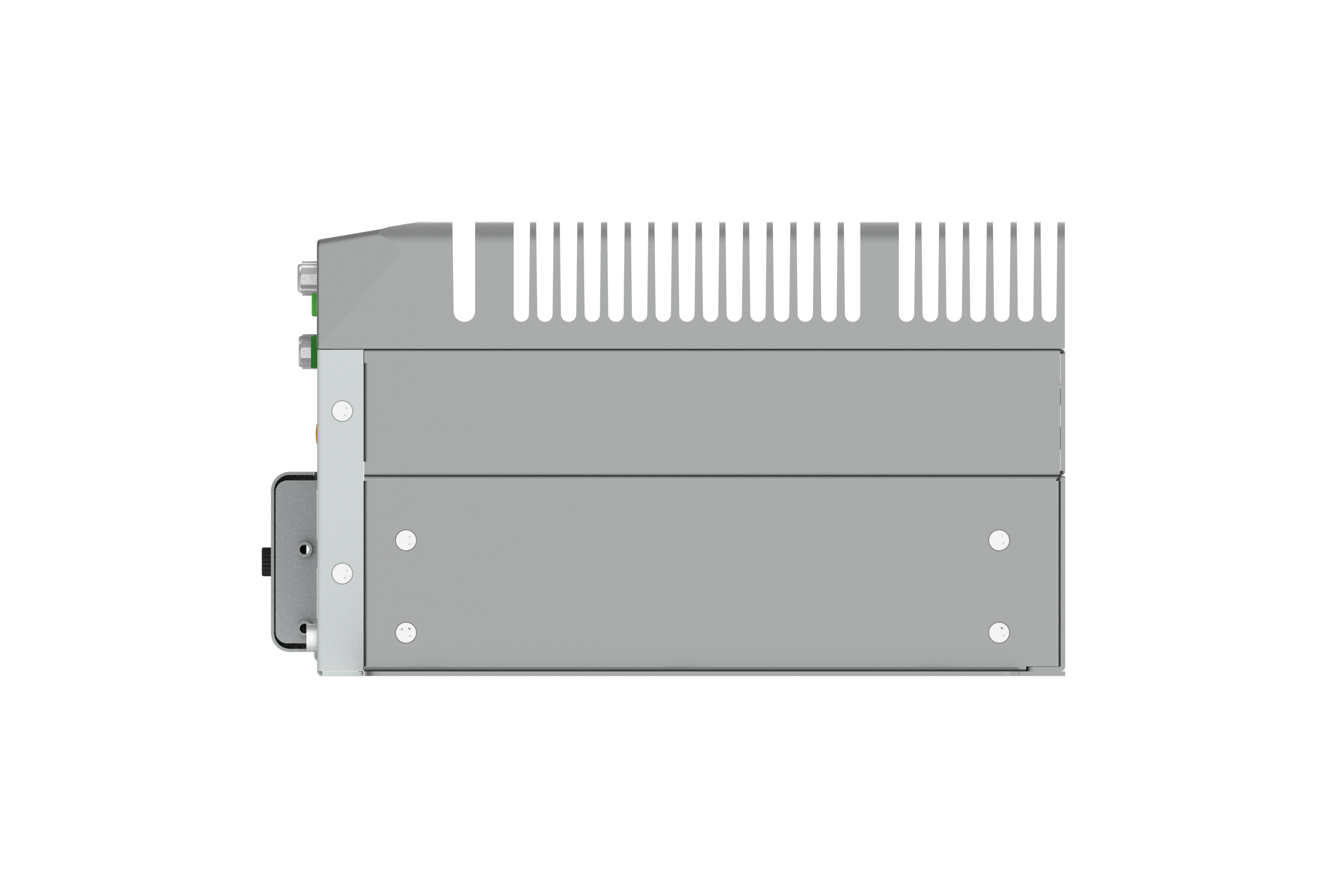

Mounting | VESA, Wall mounted, Desktop | |
|
Environment |
Heat Dissipation System | Fanless Passive Cooling | |
| ? | Operating Temperature | -20~60℃ (Industrial SSD) | |
| ? | Storage Temperature | -40~80℃ (Industrial SSD) | |
| ? | Relative Humidity | 10 to 90% RH (non-condensing) | |
| ? | Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| ? | Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| ? | Certification | CCC, CE/FCC, RoHS | |
-
